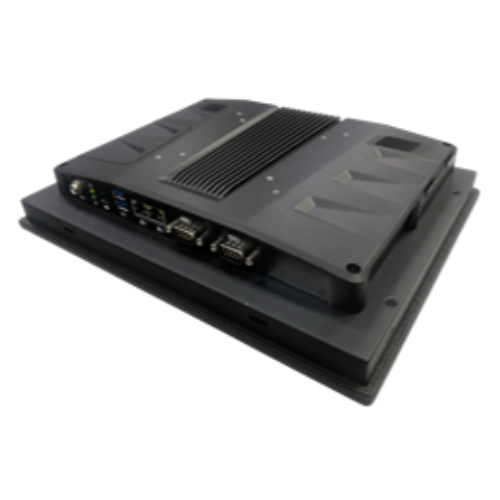

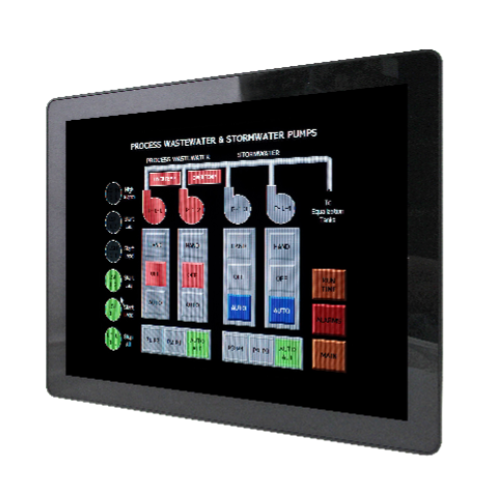

E-Catalog > Rugged Panel PC > ARC-1239-B

Features:

• CPU: Intel® Processor N97/ X7433RE /N150
• RAM:
  - 1x 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 16GB max (non ECC only)
• Panel size: 12.1"
• Display Type: XGA
• Ratio:
  - 4:3
• Resolution: 1024 x 768
• I/O Port:
  - 3xUSB
  - 1xSATA
  - 2xCOM
  - 2xLAN
• Expansion:
  - 1 x M.2 (Key-B, 2242/3042/3052, SATAIII, USB3.2 Gen1x1(default, 5Gbp/s))
  / or PCIex1(via OEM BIOS request), USB2.0, SIM slot for LTE cards
  (*Not support PCIex2 device)
  - 1 x M.2 (Key-E, 2230, PCIex1, USB2.0)
  - 1 x 80-pin IET interface
• DIO/GPIO:
  - 12-bit GPIO + 2-pin CAN bus (by ARC-BYT DB-E)
• Display Output: HDMI (optional by IET module)
• Luminance: 600 cd/m²
• Touch Type: PCAP Multi Touch
• IP Rating:
  - Front panel IP65
  - Back cover IP41
• Working Temp: -10°C ~ 50°C
• OS Support:
  - Windows 10
  - Windows 11
  - Linux
• Optional:
  - Wi-Fi / BT / 4G / 5G (by option)
