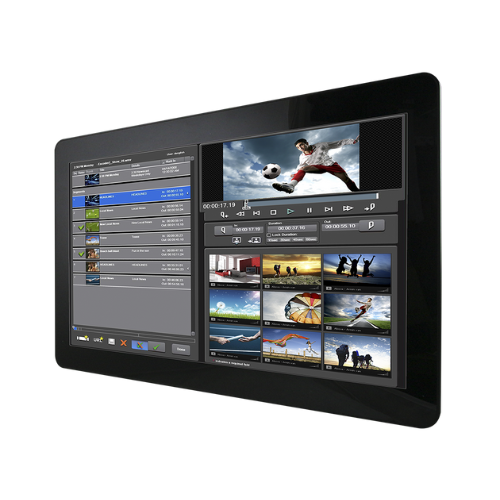

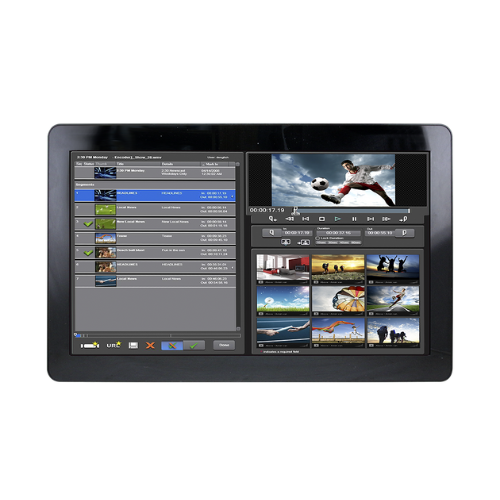

E-Catalog > Rugged Panel PC > FPC-21W42

Features

• Onboard Raptor Lake S 13th Intel® Core™ i3/ i5/ i7 Processor (LGA1700 Socket)
• 2 x 262-pin DDR5 4800 MHz SO-DIMM sockets support up to 64GB
• 1 x HDMI, 2 x DP, 2 x COM, 4 x USB 3.2, 2 x USB 2.0
• 2 x Intel® Gigabit Ethernet (2.5GbE & 1GbE)
• 1 x 2.5” SATA SSD (optional), 1 x 2280 & 2242 M.2 M-Key with PCIe x4 & SATA 3.0 signal (optional)
• 1 x PCIe x16 expansion slot
• 3 x Independent displays supported (Intel Virtualization)
• Wi-Fi & bluetooth (optional)
• Mic-in, line-out
• TPM 2.0
• CPU cooler and system fan design
• PSU 300W power supply

Specifications

• CPU:
  - 13th Generation Intel® Core™ i3/ i5/ i7 Processors (LGA1700 Socket)
• RAM:
  - 2 x 262-pin DDR5 4800 MHz SO-DIMM sockets support up to 64GB (non ECC only)
• Panel Size: 21.5"
• Display Type: Full HD
• Ratio: 16:9
• Resolution: 1920 x 1080

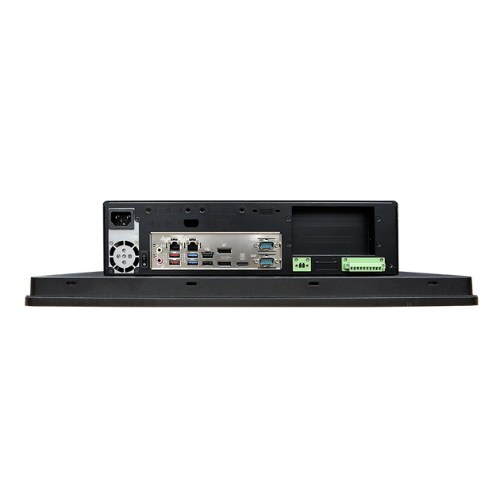

• I/O Port:
  - 6xUSB
  - 1xSATA
  - 2xCOM
  - 2xLAN
• Expansion:
  - 1 x PCIe x16 Gen4 Slot
  - 1 x M.2 (2230) E-Key support WiFi module, with 1 x PCI-e x1 & USB 2.0 (CNVi Supported)
• DIO / GPIO: 1x8-bit GPIO (optional)
• Display Output:
  - 1×HDMI
  - 2×DP

• Luminance: 250 cd/m²
• Touch Type: PCAP Multi Touch
• IP Rating: Front IP65
• Working Temp: 0°C ~ 45°C
• OS Support:
  - Windows 10, Windows 11
  - Linux
• Optional: Wi-Fi & bluetooth (optional)
