E-Catalog > Rugged Panel PC > ARC-1738-C1

Features:

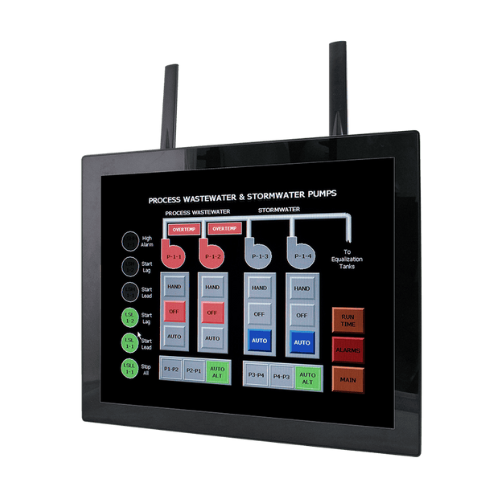

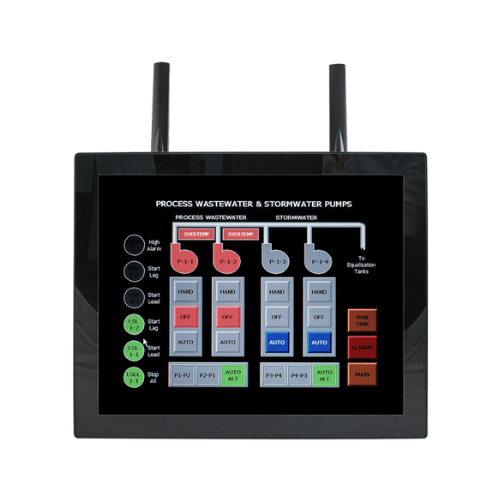

• 17” Advanced Rugged Panel PC
• 10 points multiple PCAP touch
• 11th Generation Intel® Core™ i3/i5 Processors
• 2 x 260-pin DDR4 3200 MHz SO-DIMM socket, supports up to 64GB max
• 2 x LAN, 4 x USB3.2 Gen2
• 3 x USB2.0 (optional)
• 1 x RS232/422/ 485, 2 x RS232(default)
• 3 x RS232/GPIO/USB2.0 (optional)
• Wi-Fi & BT (optional)
• Front panel IP65
• TPM 2.0

Specifications:

• CPU:
  - 11th Generation Intel® Core™ i3/i5 Processors
• RAM:
  - 2 x 260-pin DDR4 3200 MHz SO-DIMM socket, supports up to 64GB max
• Panel Size: 17"
• Display Size: SXGA
• Ratio: 4:3
• Resolution: 1280 x 1024

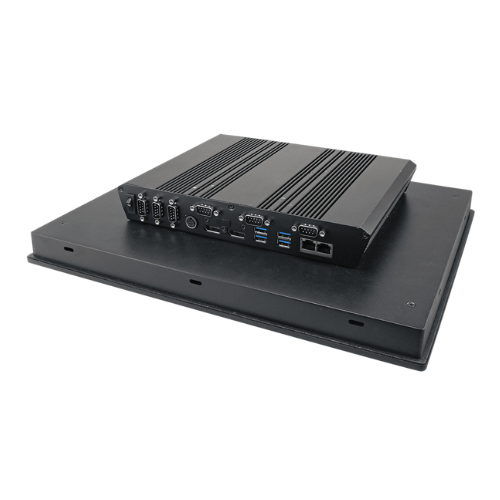

• I/O Port:
  - 4xUSB
  - 1xSATA
  - 3xCOM
  - 2xLAN
• Expansion:
  - 1 x M.2 Key B+M with 1 x SIM card slot, support WWAN+GNSS
  - 1 x M.2 Key E 2230
• Display Output:
  - 2 x DP++

• Luminance: 250 cd/m²
• Touch Type: PCAP Multi Touch
• IP Rating: Front panel IP65
• Working Temp: 0°C ~ 50°C
• OS Support:
  - Windows 10 / Windows 11
  - Linux
• Optional:
  - 3 x RS232/GPIO/USB2.0 (optional)
  - 3 x USB2.0 (optional)
  - Wi-Fi & BT (optional)
