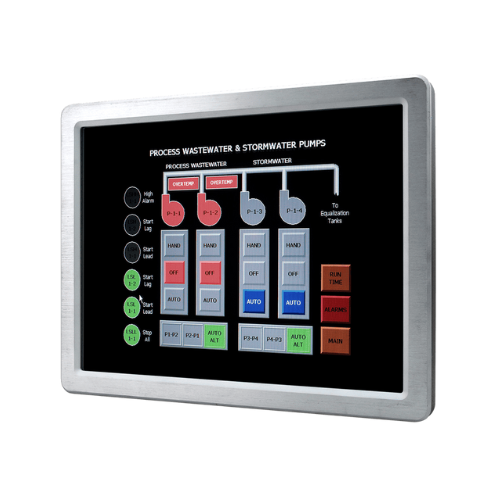

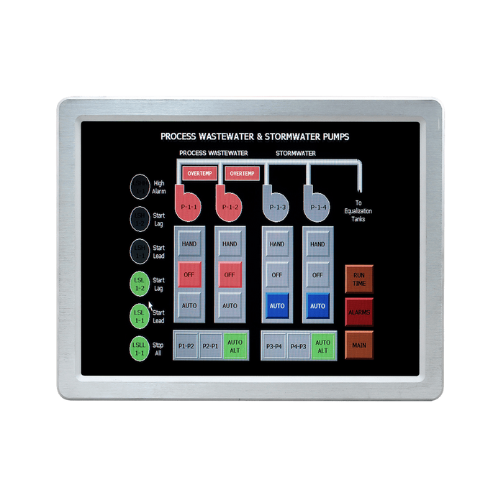

E-Catalog > Rugged Panel PC > ARC-1238

Features:

• CPU:
  - 11th Generation Intel® Core™ i3/i5/i7 Processors
• RAM:
  - 1 x 260-pin SODIMM socket max. up to 32GB DDR4 3200MT/s
• Panel Size: 12.1"
• Display Type: XGA
• Ratio:
  - 4:3
• Resolution: 1024 x 768

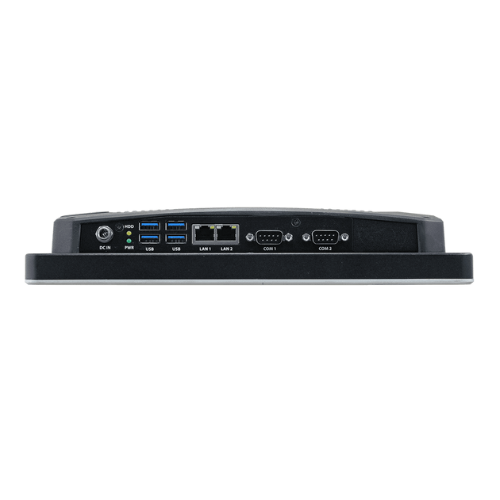

• I/O Port:
  - 4xUSB
  - 1xSATA
  - 2xCOM
  - 2xLAN
• Expansion:
  - 1 x M.2 Key-B 2242/3042/3052 with SIM card slot
  - 1 x M.2 Key-E 2230
  Support PCIe/USB/CNVi Wi-Fi/BT module
  - 1 x 80-pin IET interface
• Display Output: HDMI (optional by IET module)

• Luminance: 600 cd/m²
• Touch Type: Resistive
• IP Rating:
  - Front panel IP65
  - Back cover IP41

• Working Temp: -10°C ~ 50°C

• OS Support:
  - Windows 10
  - Windows 11
  - Linux
