E-Catalog > Rugged Panel PC > ARC-18W33

Features:

• 18.5" WXGA LCD with PCAP multi-touch
• Intel® Celeron® Processor J3455 SoC BGA Processor
• 1 x 204-pin DDR3L SODIMM socket, supports up to 8GB DDR3L 1600MTs SDRAM
• Rich I/Os, 2 LAN, 2 COM, 4 USB, SIM card slot, swappable drive bay, speaker out for flexible expansion modules
• 1x Mini PCIe slot
• Rugged design for vibration & shock protection
• Fanless operation from -10 ~ 50°C
• Wide range DC power input from +9 ~ 36Vdc
• Service window, easy to install memory module
• Front panel: IP65, rear: IP41(except I/O)
• CE/FCC Class B, VCCI
• TPM2.0 (optional)

Specifications:

• CPU:
  - Intel® Celeron® Processor J3455, 2M Cache, up to 2.30 GHz
• RAM:
  - 1 x 204-pin DDR3L SODIMM socket, supports up to 8GB DDR3L 1600Mhz SDRAM (non-ECC)
• Panel Soze: 18.5"
• Display Type: WXGA
• Ratio: 16:9
• Resolution: 1366 x 768

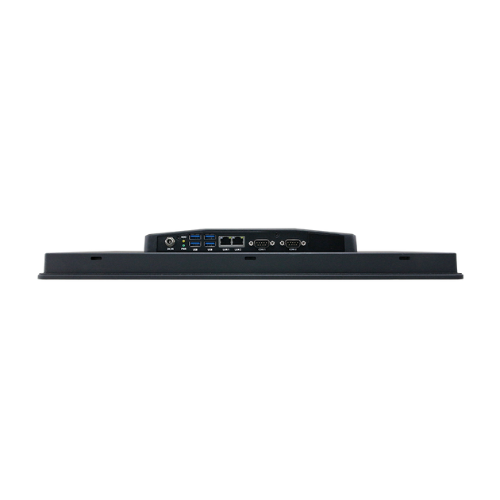

• I/O Port:
  - 4xUSB
  - 1xSATA
  - 2xCOM
  - 2xLAN
• Expansion:
  - 1 x Mini PCIe slot
  - 1 x 80-pin IET interface
• DIO / GPIO: 12-bit GPIO + 2-pin CAN Bus
• Display Output: HDMI (optional by IET module)

• Luminance: 500 cd/m²
• Touch Type: PCAP Multi Touch
• IP Rating:
  - Front panel IP65
  - Back cover IP41
• Working Temp: -10°C ~ 50°C
• OS Support:
  - Windows 10
  - Linux
• Optional: TPM2.0 (optional)
