Features:

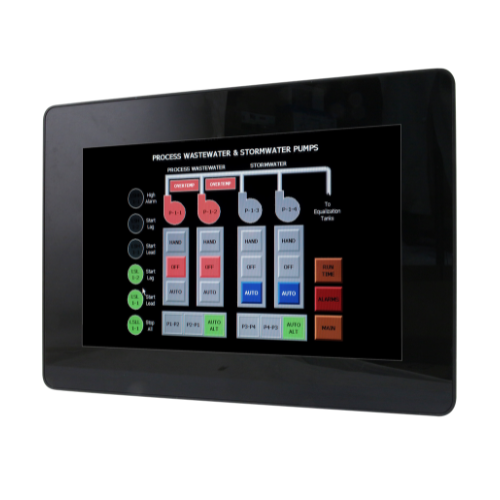

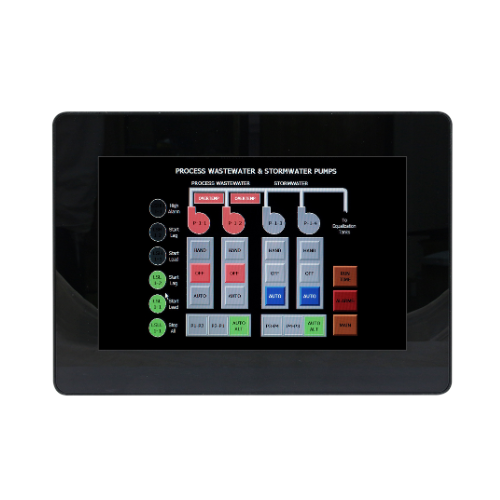

• 10.1” WXGA LCD with PCAP multi-touch
• Intel® Processor N97
• 1 x 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 16GB max (non ECC only)

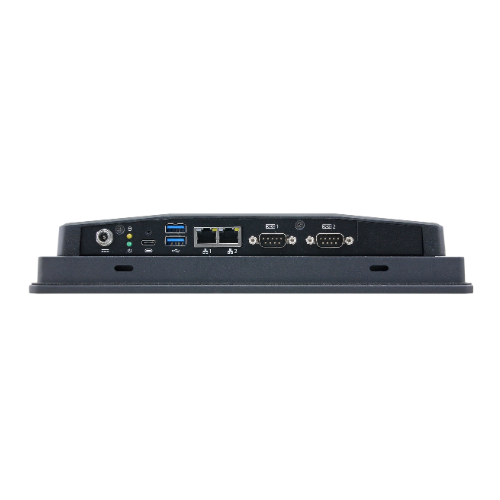

• 2 x LAN (2.5GbE), 2 x COM, 2 x USB3.2
• 1 x USB type C (w/ PD(20V/3A input), USB3.2(Gen2x1, 10Gbps, 5V/3A output), display function)
• Available expansion for audio, USB, COM, HDMI, MPCIe, GPIO, CAN bus
• 2 x M.2 slots (Key-B 2242/3042/3052 with SIM slot1, Key-E 2230)
• Wi-Fi / BT / 4G / 5G (by option)
• Rugged design for vibration & shock protection
• Fanless operation
• Wide range DC power input +12 ~ 24Vdc
• Service window for storage and memory module
• IP65 compliant front panel, IP41 rear box
• TPM2.0

Specifications:

• CPU: Intel® Processor N97, 6M Cache, up to 3.6 GHz
• RAM: 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 16GB max (non ECC only)
• Panel Size: 10.1"
• Display Size: WXGA
• Ratio: 16:10
• Resolution: 1280 x 800
• I/O Port:
  - 3xUSB
  - 1xSATA
  - 2xCOM
  - 2xLAN
• Expansion:
  - 1 x M.2 or PCIex1, USB2.0, SIM slot for LTE cards(*Not support PCIex2 device)
  - 1 x M.2 (Key-E, 2230, PCIex1, USB2.0)
  - 1 x 80-pin IET interface

• DIO/GPIO:
  - 12-bit GPIO + 2-pin CAN bus (by ARC-BYT DB-E)
• Display Output: HDMI (optional by IET module)
• Luminance: 400 cd/m²
• Touch Type: PCAP
• IP Rating:
  - Front panel IP65
  - Back cover IP41
• Working Temp: 0°C ~ 50°C
• OS Support:
  - Windows 10, Windows 11
  - Linux
• Optional
  - Wi-Fi / BT / 4G / 5G (by option)
