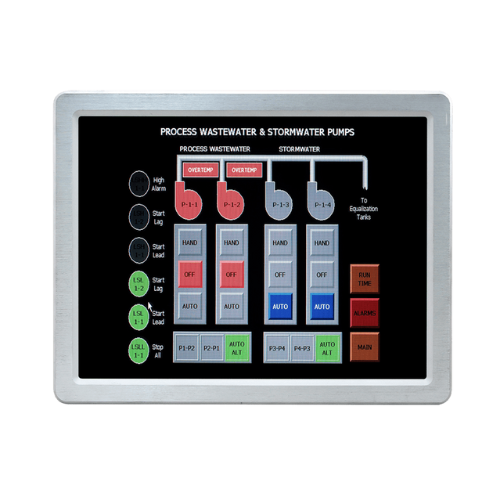

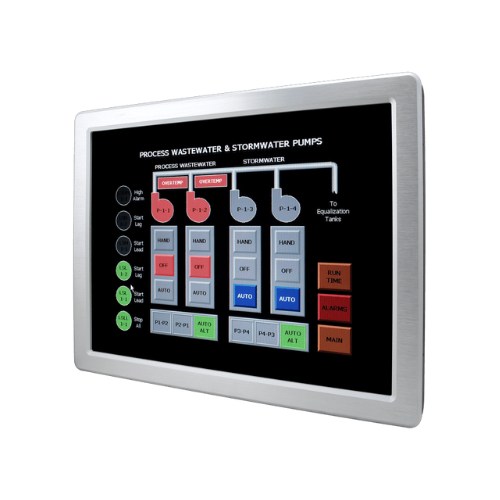

E-Catalog > Rugged Panel PC > ARC-1538

Features:

• CPU: 11th Generation Intel® Core™ i3/i5/i7 Processors
• RAM:
  - 1 x 260-pin DDR4 3200MHz SO-DIMM up to 32 GB
• Panel Size: 15"
• Display Type: XGA
• Ratio:
  - 4:3
• Resolution: 1024 x 768

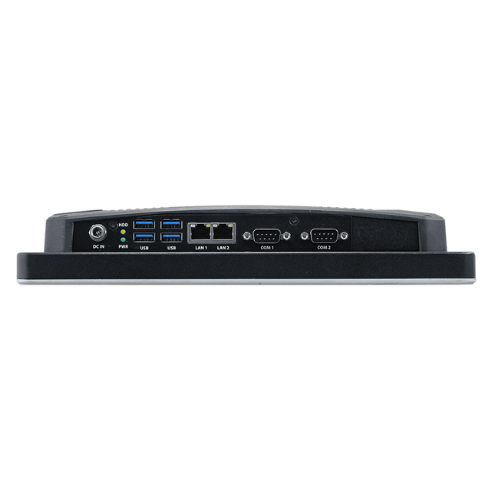

• I/O Port:
  - 4xUSB
  - 1xSATA
  - 2xCOM
  - 2xLAN
• Expansion:
  - 1 x M.2 Key-B 2242/3042/3052 with SIM card slot
  - 1 x M.2 Key-E 2230 Support PCIe/USB/CNVi Wi-Fi/BT module
  - 1 x 80-pin IET interface
• Display Output: HDMI (optional by IET module)

• Luminance: 500 cd/m²
• Touch Type: Resistive
• IP Rating:
  - Front panel IP65
  - Back cover IP41
• Working Temp: - 10°C ~ 50°C
• OS Support:
  - Windows 10
  - Windows 11
  - Linux
• Optional:
  - Support Wi-Fi / BT / 4G / 5G (by option)
