Key Features

• Supports 12/13/14th Gen Intel® Core™ i9/i7/i5/i3 CPU
• Intel® H610E Chipset
• Dual-channel DDR5 4800MHz memory up to 64GB
• Triple independent display: 1x DP1.4a, 1x VGA, 1x HDMI 2.0b
• Dual GbE ports: 1x 1GbE (Intel® I219-LM), 1x 2.5GbE (Intel® I225-V)
• Expansion slots: 1x PCIe x16 Gen5, 1x PCIe x4 Gen3, 1x PCIe x1 Gen3, 4x PCI
• TPM 2.0 onboard

Introduction

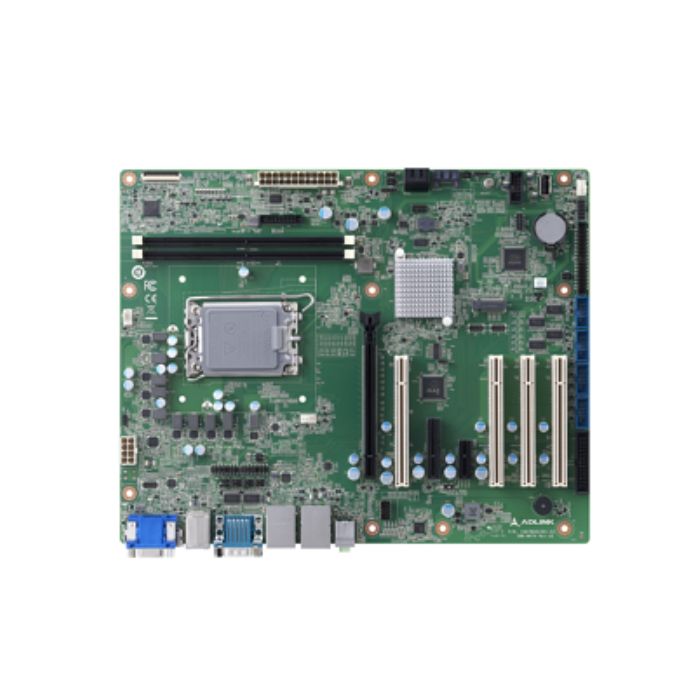

       ADLINK IMB-M47H Industrial ATX Motherboard offers high computing performance with diverse I/O for industrial automation applications. It is the suitable choice for applications requiring real-time processing and high-level graphic capability.

       ADLINK IMB-M47H with 14/13/12th Gen Intel® Core processor (code name: Alder Lake) provides support for PCIe Gen 5 x 16 and DDR5 memory with up to 4800 MT/s for fast data transfer to support best-in-class peripherals like PEG cards, frame grabber cards, motion cards or I/O cards. These capabilities empower the use of high-performance cards integrated for complex processing tasks including smart manufacturing, 5G manufacturing, semiconductor or machine vision applications.
