Product Detail :
Key Features
● Supports LGA1150 socket 4th generation Intel® Core™ i7/i5/i3 and Celeron® processors with Intel® H81 chipset (codename: Haswell)
● Two 204-pin DDR3-1333/1600 SO-DIMM max. up to 16 GB
● PCIe x16 Gen2 supported
● Supports two SATA-600 and two SATA-300 interfaces
● Supports two USB 3.0 and eight USB 2.0 ports
● Supports three RS-232/422/485 and three RS-232 ports
● DualView display via HDMI/VGA/LVDS
● Dual Gigabit Ethernet supported
Introduction

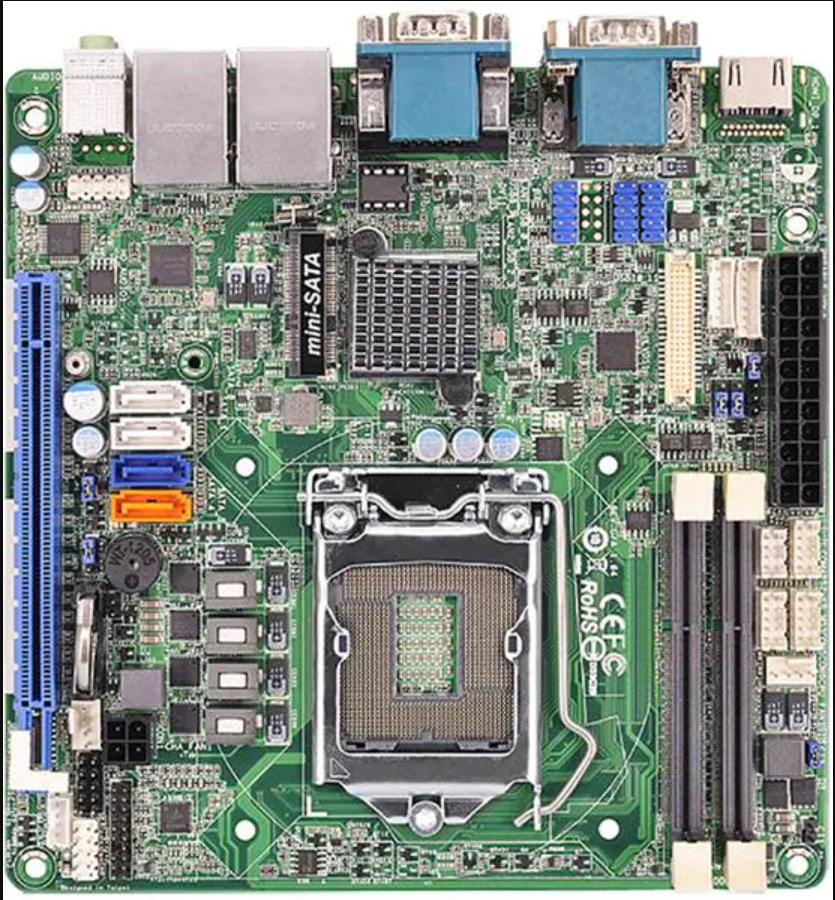

Axiomtek, one of the world's leading designers and manufacturers of innovative, high performance and reliable PC-based industrial computer products, is pleased to announce the arrival of the MANO881, its new mini-ITX motherboard with Intel® H81 Express chipset. The product offers socket H3 - LGA1150 that supports the 4th generation Intel® Core™ and Celeron® (Haswell) processors. This feature-rich board has two sockets for DDR3 system memory of up to 16 GB. The high-performance mini-ITX motherboard MANO881 supports one PCIe x16 slot and integrated with Intel® HD 5000 graphics supports powerful graphic processing and dual-display capability through HDMI, VGA and LVDS interfaces. The outstanding embedded board also includes rich I/O expansions which can help system integrators to develop solutions quickly at a more competitive price. The MANO881 is excellent for in-vehicle PCs, medical imaging and gaming devices, in-flight entertainment systems, industrial automation systems, and other portable devices.
Axiomtek’s MANO881 comes with advanced connectivity including three RS-232-232/422/485 ports, three RS-232 ports, two USB 3.0 ports, eight USB 2.0 ports, two SATA-600, two SATA-300, two Gigabit LANs, HDMI, LVDS, VGA, digital I/O (8 channel programmable), and HD audio. Expansion capabilities include one PCIe x16 slot and mSATA socket. The motherboard supports a watchdog timer and SMART FAN. This compact embedded platform also meets all requirements for the Windows® 7 & 8 OS.
