Introduction

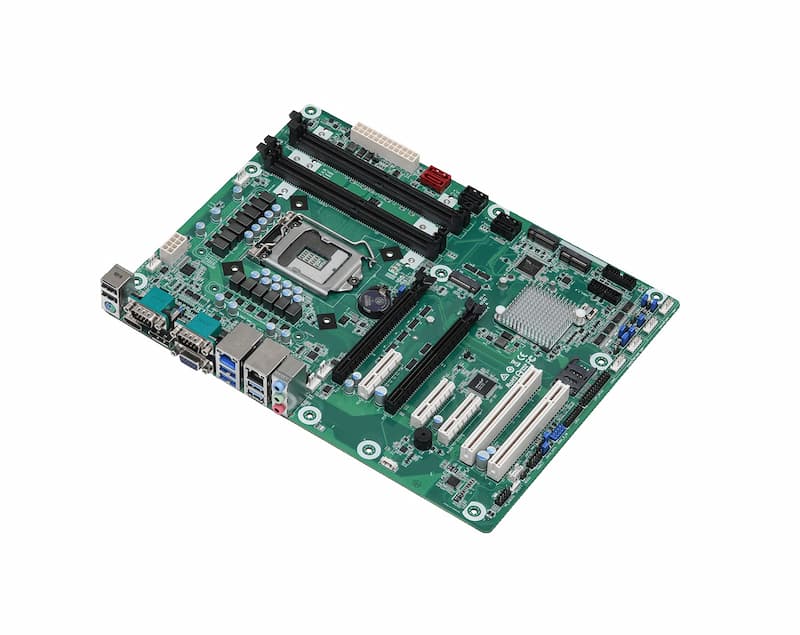

The ADLINK IMB-M46 Industrial ATX Motherboard supports lines of the 10th Generation Intel® Core™ i desktop processors, an Intel® Q470E Chipset, and 5 PCIe expansion slots to provide a cost-competitive embedded computing solution.
With its industrial-grade I/O ports design, high-speed data transfer interfaces including PCIe 3.0, USB 3.2 Gen2, ATA 6Gb/s (SATA III) as well as dual-channel DDR4 2400/2666/2933MHz memory, the IMB-M46 Industrial ATX Motherboard offers a significant competitive advantage for durable connectivity, device compatibility, rugged embedded computing as well as extreme environment readiness for industrial machine automation systems, machine vision systems, and testing and measurement applications.
![](../uploadedimages/c1/Product_38874_104967605_fullsize.jpg)
Key Features
● Support 10th Gen. Intel® Core™ i9/ i7/ i5/ i3 processor and Q470E chipset
● Dual-channel DDR4 2933/2666/2400 MHz memory; up to 128GB (based on CPU)
● Triple independent display outputs: 1x DP1.2, 1x VGA and 1x HDMI 2.0a
● Dual GbE ports: 1x Intel 1Gigabit, 1 x Intel 2.5Gigabit
● Expansion slots: 1x PCIe x16 Gen3, 1x PCIe x8 Gen3, 3x PCIe x4 Gen3, 2x PCI
● TPM 2.0 onboard
