Features

• Intel® Pentium®/Celeron® Processor
• Single DRAM Socket, Max. Up to 8GB DDR3L 1866MHz
• Rich I/O, 1-VGA, 1-COM, 2-HDMI, 2-LAN, 4-USB3.0, 2-Antennal Mounting
• Fanless Operating from -10°C ~ 50°C
• Wide Range DC Power Input from 12V ~ 26V
• Compact Size, 177mm x 123mm x 43.5mm
• Optional VESA / DIN-Rail Kit
• TPM 2.0

Specifications

• CPU: Intel® Pentium®/Celeron® Processor
• Memory: 1 x 204-pin SO-DIMM Socket, Max, Up to 8GB DDR3L 1866MHz
• TPM 2.0

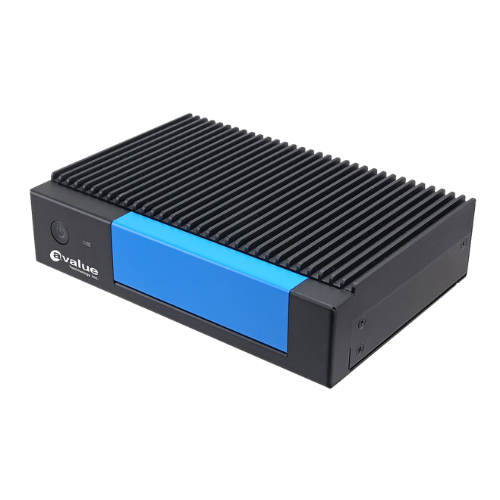

• I/O Port (Front):
  - 1xLED
  - 1xPWR button

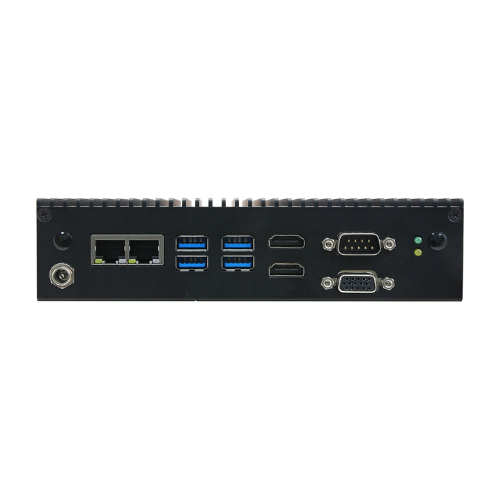

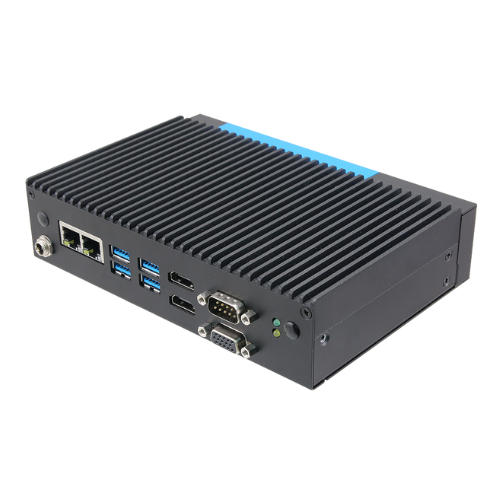

• I/O Port (Rear):
  - 1xVGA
  - 2xHDMI
  - 1xRS232/RS422/485
  - 2xGb LAN
  - 4xUSB
  - 1xVGA
  - 2xLED
  - 1xDC IN
• Expansion:
  - 1xFull Size Mini PCIe
  - 1xHalf Size Mini PCIe
• Storage Device:
  - 1x2.5” Drive Bay
  - 1x mSATA

• Power Supply:
  - Power Range: Power Input: Typical 12/24Vdc ( +9~ 36V )
  - 60W Adapter as default, PWR cord as option
  - Adapter PN: ACC-ADP-060N-08R
  - Power cord: depends on regions
• Operating Temp. :-10°C ~ 50°C (14°F ~ 122°F)
• Dimension  (W x L x H) : 177mm x 123mm x 43.5mm
• Software Support:
  - Windows 10
  - Linux
• Certification: CE, FCC Class B, UKCA
