E-Catalog > Fanless Tiny System > NUC-TGU

Key Features

• 11th Gen Intel® Core™ i7/i5/i3 Processor
• Intel® Iris® Xe Graphics
• Single Memory Socket, Max. Up to 32GB DDR4 3200
• Dual Display, HDMI 2.0b
• Dual Intel® Gigabit Ethernet, 2.5GbE, 1GbE
• Triple M.2 Slot, Key-E/B/M for Wi-Fi, LTE, SSD, I/O module
• Supports iAMT, Kensington Lock, IP40
• Default dTPM 2.0, Mounting Kit, Wi-Fi (CE/FCC) certificated

Specifications

• CPU: 11th Gen Intel® Core™ i7/i5/i3 Processor
• Memory: 1 x 260-pin DDR4 SODIMM Socket, Supports Up to 32GB DDR4 3200MTs SDRAM
• TPM2.0

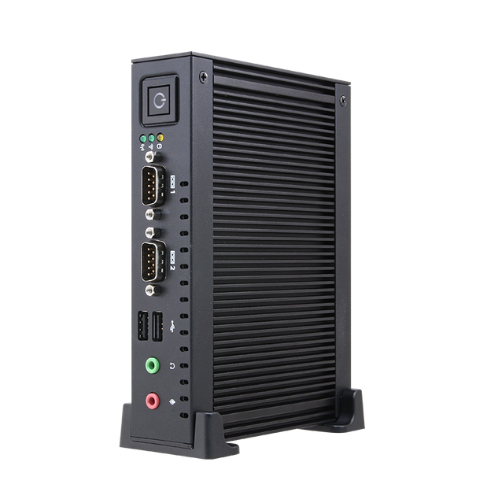

• I/O Port (Front):
  - 3xLED
  - 1xPWR button
  - 2xRS232/RS422/485, 2XUSB
  - 1xMic-in,
  - 1xLine-out

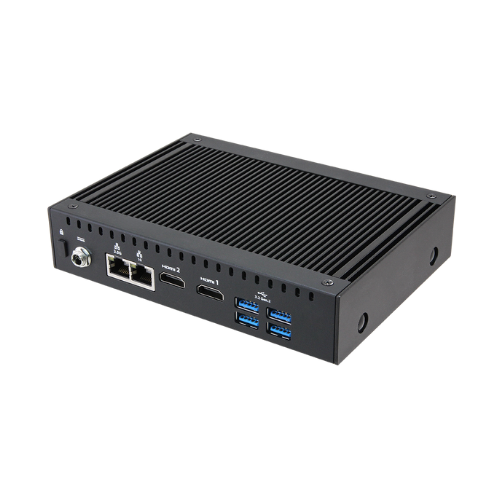

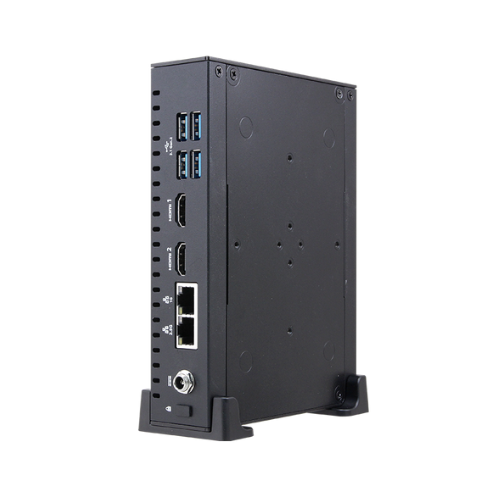

• I/O Port (Rear):
  - 1xGb LAN
  - 1x2.5Gb LAN
  - 4xUSB,
  - 2xHDMI
  - 1xDC IN
  - 1xKensington lock
• Expansion:
  - 1xM.2 2230 (Key-E)
  - 1xM.2 2242/3042/3052 (Key-B)




• Storage Device:
  - 1xM.2 2280 (Key-M)
  - 1xM.2 2242 (Key-B)
• Power Supply:
  - Power Input: Typical +12Vdc
  - 60W Adapter as default, PWR cord as option
  - Adapter PN: ACC-ADP-060N-14R/ACC-ADP-
  - 060N-08R
  - Power cord: depends on regions
• Operating Temp. :0°C ~ 50°C (32°F ~ 122°F)
• Dimension  (W x L x H): 170mm x 125mm x 36mm
• Software Support:
  - Windows 10, Windows 11
  - Linux
• Certification:
  - CE, FCC Class B, UKCA
  - Wi-Fi 6E certified
• IP Rating: IP40
