Key Features

• 13th Gen Intel® Core™ i7/i5/i3 (15W) Processors
• Intel® Iris® Xe/ UHD Graphics
• 1-Memory Socket (Capacity Max. Up to 32GB DDR5 4800)
• 2-COM Port (RS-232/422/485)
• 2-Intel® Ethernet Controller (1GbE, 2.5GbE)
• 2-Audio Jack (Mic-In, Line-Out)
• 3-Expansion Slot (M.2 Key-E, Key-B, Key-M)
• 4-Display (HDMI 2.0b)
• 8-USB Port(2-USB 2.0, 4-USB3.2 Gen2, 2-USB3.2 Gen1)
• Support Table Stand, VESA, DIN Rail mount
• Support dTPM 2.0, iAMT

Specifications

• CPU: 13th Gen Intel® Core™ i7/i5/i3 (15W) Processors
• Memory: 1 x 262-Pin SO-DIMM Socket (Capacity Max. Up to 32GB DDR5 4800)
• TPM 2.0

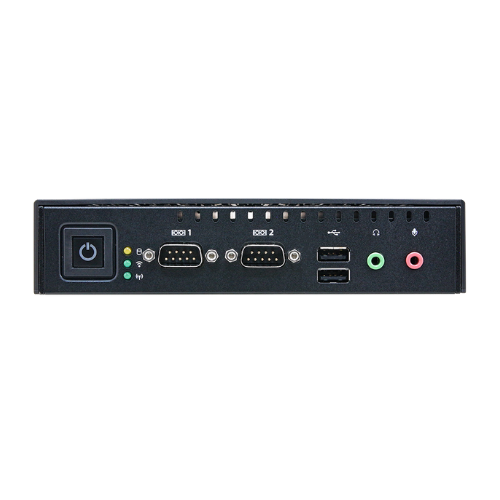

• I/O Port (Front):
  - 2xLED
  - 1xPWR button
  - 2xRS232/422/485
  - 2xUSB
  -1xMic-in/Line-out

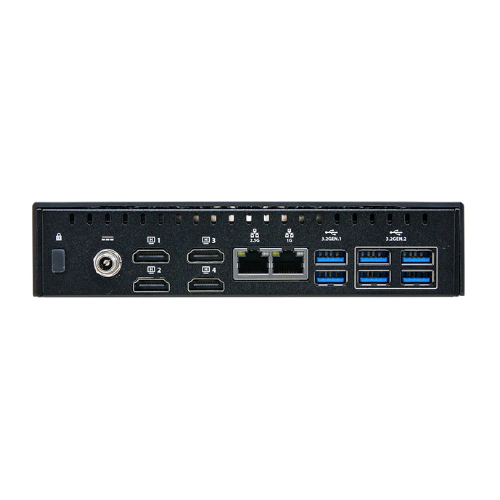

• I/O Port (Rear):
  - 4xHDMI
  - 6xUSB
  - 1xDC IN
  - 2xRJ4

• Expansion:
  - 1xM.2 (Key-E)
  - 1xM.2 (Key-B)
  - 1xM.2 (Key-M)

• Storage Device:
  - 1xM.2 (2242, Key-B)
  - 1xM.2 (2280, Key-M)

• Power Supply:
  - Power Input: Typical +12Vdc
  - 120W Adapter as default, PWR cord as option
  - Adapter PN: ACC-ADP-120N-07R
  - Power cord: depends on regions

• Operating Temp. :0°C ~ 50°C (32°F ~ 122°F)

• Dimension (W x L x H): 174mm x 125mm x 38.7mm

• Software Support:
  - Win10, Win11
  - Linux

• Certification: CE FCC Class B

• IP Rating: IP40
