Features

• 8th Gen Intel® Core™ i7/i5/i3/Celeron® Processor
• Intel® UHD Graphics 620/610
• Dual Gigabit Ethernet, HD Audio
• Dual Channel Max up to 64GB DDR4 2400Mhz
• Dual Expansion, M.2 Key-B/E
• Dual HDMI w/CEC Controller (Factory Option)
• TPM 2.0, RAID 0/1
• Support VESA (Factory Option)

Specifications

• CPU: 8th Gen Intel® Core™ i7/i5/i3/Celeron® Processor
• Memory: 2x 260-Pin SO-DIMM Socket, Max. Up to 64GB DDR4 2400MHz
• TPM 2.0
• I/O Port (Front):
  - 1xLED
  - 1xPWR button

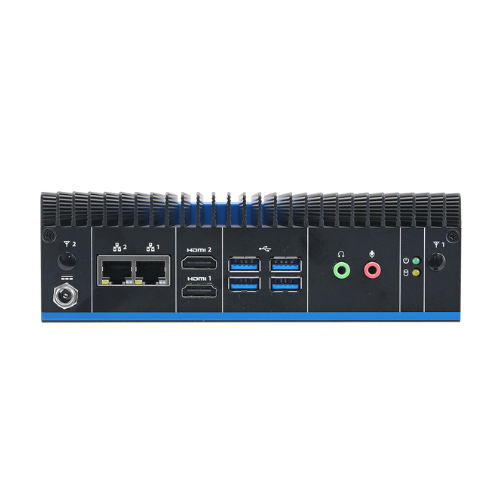

• I/O Port (Rear):
  - 2xHDMI
  - 2xGb LAN
  - 4xUSB
  - 1xMic-in
  - 1xLine-out
  - 2xLED
  - 1xDC IN
• Expansion:
  - 1xM.2 (Key-E)
  - 1xM.2 (Key-B)
• Storage Device:
  - 1x2.5" Drive Bay
  - 1xM.2 (2242, Key-B)

• Power Supply:
  - Power Input: Typical +12Vdc
  - 120W Adapter as default, PWR cord as option
  - Adapter PN: ACC-ADP-120N-07R
  - Power cord: depends on regions
• Operating Temp. :-10°C ~ 50°C (14°F ~ 122°F)
• Dimension  (W x L x H) : 177mm x 123mm x 55mm
• Software Support:
  - Windows 10
  - Linux
• Certifications: CE, FCC Class B, UKCA
