E-Catalog > Fanless Tiny System > NUC-APL

Features

• Intel® Celeron® Processor J3455/N3350
• Single DRAM Socket, Max. Up to 8GB DDR3 1866MHz
• Rich I/O, 2 x COM, 2 x LAN, 4 x USB3.0, 1 x Audio, 2 x Antennal Mounting
• Triple Display, 2 x HDMI, 1 x DP (DVI-I/VGA Factory Option)
• Expansion Slot, M.2 Key-B, M.2 Key-E
• Fanless Operating from 0°C ~ 60°C
• DC Power Input +12V
• Compact Size, 115mm x 111mm x 58mm
• Supports VESA/Din-Rail Kit
• TPM 2.0 (Factory Option)

Specifications

• CPU: Intel® Celeron® Processor J3455/N3350
• Memory: 1 x 204-pin SO-DIMM Socket, Max, Up to 8GB DDR3L 1866MHz
• TPM: TPM 2.0 (Factory Option)

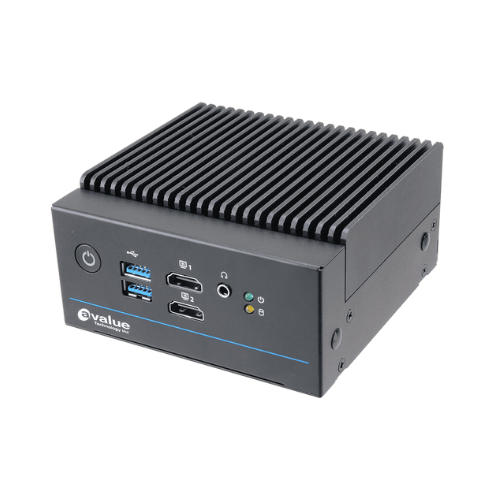

• I/O Port (Front) :
  - 2xLED
  - 1xPWR button
  - 2xHDMI
  - 2xUSB

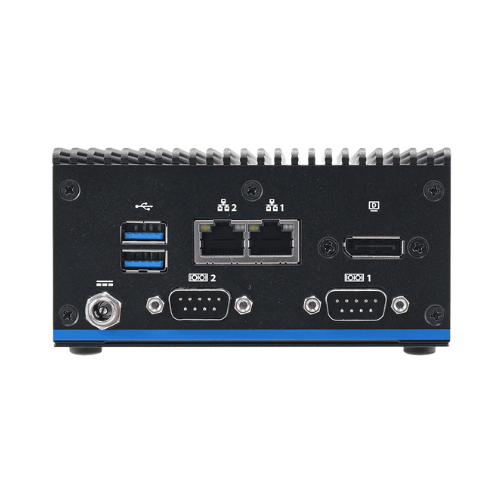

• I/O Port (Rear) :
  - 1xRS232
  - 1xRS232/RS422/485
  - 2xGb LAN
  - 2xUSB
  - 1xDP
  - 1xDC IN

• Expansion:
  - 1xM.2 (Key-E)
  - 1xM.2 (Key-B)

• Storage Device:
  - 1x2.5" Drive Bay
  - 1xM.2 (2242, Key-B)

• Power Supply:
  - Power Input: Typical +12Vdc
  - 60W Adapter as default, PWR cord as option
  - Adapter PN: ACC-ADP-060N-14R/ACC-ADP-060N-08R
  - Power cord: depends on regions

• Operating Temp. :0°C ~ 50°C (32°F ~ 122°F)

• Dimension (W x L x H) : 115mm x 111mm x 58mm

• Software Support:
  - Windows 10
  - Linux

• Certification: CE, FCC Class A, UKCA
