E-Catalog > Panel PCs > SP-AL Series

Key Features

● Intel Atom® x5-E3930/x7-E3950 processor
● 5 points capacitive or 1 point 5-wire resistive touch screens
● External I/O: 1x DisplayPort, 1x USB 2.0, 1x USB 3.0, 2x GbE ports, 2x COM port (RS232/422/485)
● Internal I/O: 1x mPCIe slot, 1x USIM slot, 1x USB 2.0, 2x I2C, 1x 8 GPIO
● Expansion I/O: Customized specifically by FM board
● Storage options: 1x eMMC, 1x SATA, 1x M.22x 2W speaker, 1x Mic in /Line out
● 2x 2W speaker, 1x Mic in /Line out
● Front side IP65 protection

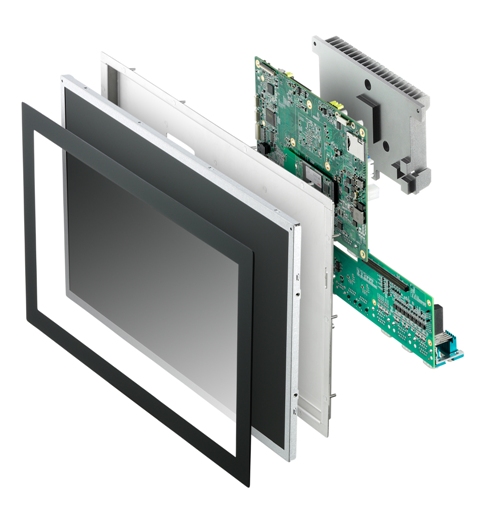

     The ADLINK Smart Panel is an embedded open frame panel computer able to integrate into a wide variety of form factors and configurations. The Smart Panel provides an exceptional range of available display sizes, touch types, DC inputs, and I/O, able to fulfill a diversity of vertical requirements. Function modules can expand I/O irrespective of type or quantity.
