E-Catalog > Panel PCs > GOT3156T-834-DC

Key Features

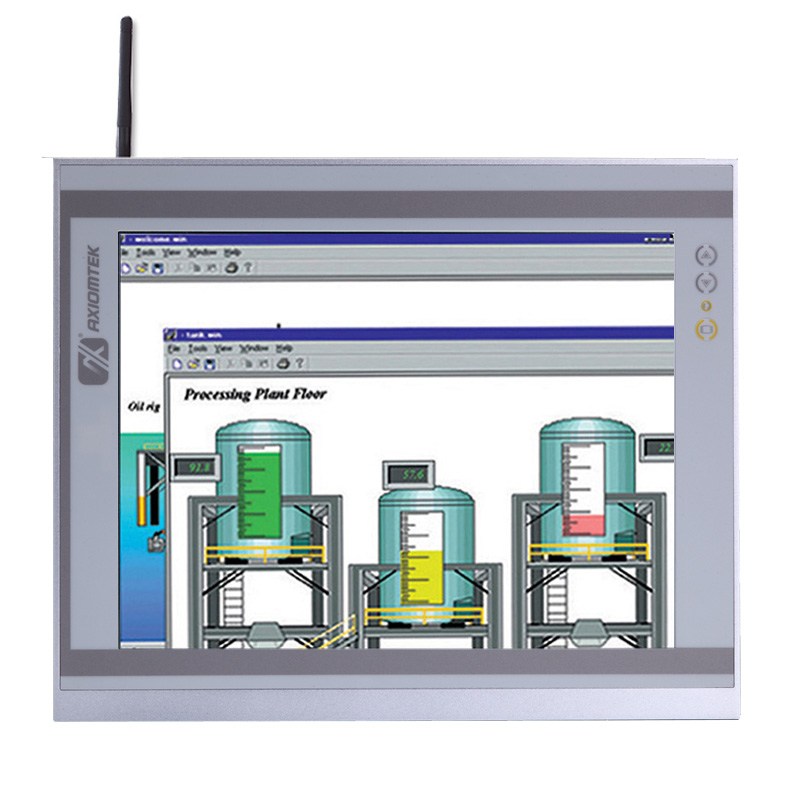

● 15" XGA color TFT LCD display
● Fanless cooling system with Intel® Atom™ processor E3827 (1.75 GHz) (Bay Trail)

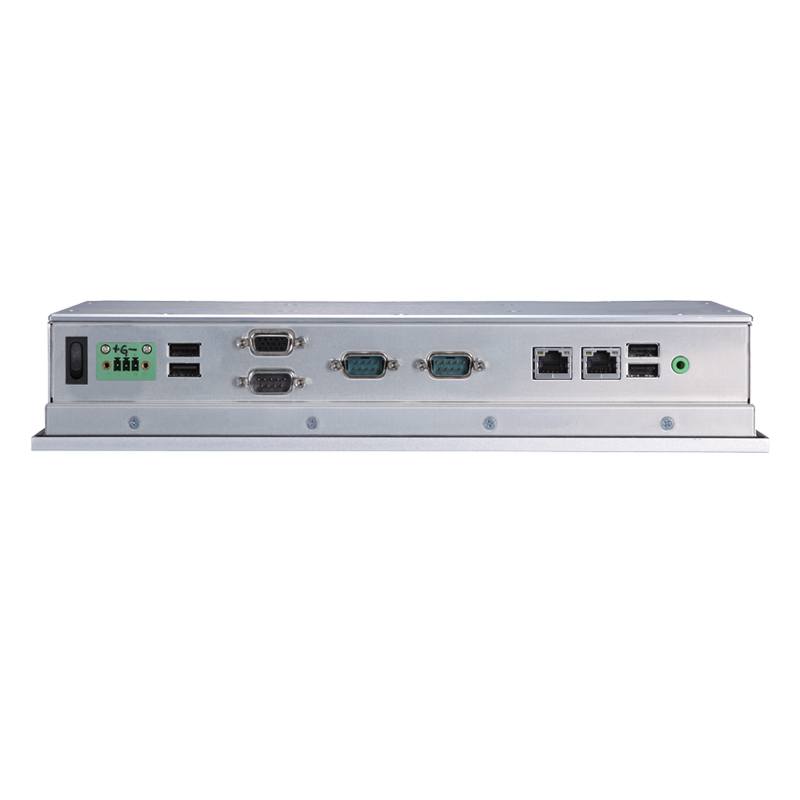

● 2 Gigabit LAN, 2 USB 3.0, 2 USB 2.0 & 4 COM ports
● WLAN/3G module and antenna (optional)
● 2 PCI Express Mini Card slots
● 9~36 VDC wide voltage and over current protection
● Supports panel mount and optional VESA arm, desktop stand, wall mount
● 2.5" 7/9.5 mm SATA HDD and CFast™/mSATA
● -20°C to +55°C wide temperature range
● Adjust RS-232/422/485 setting via BIOS

Introduction

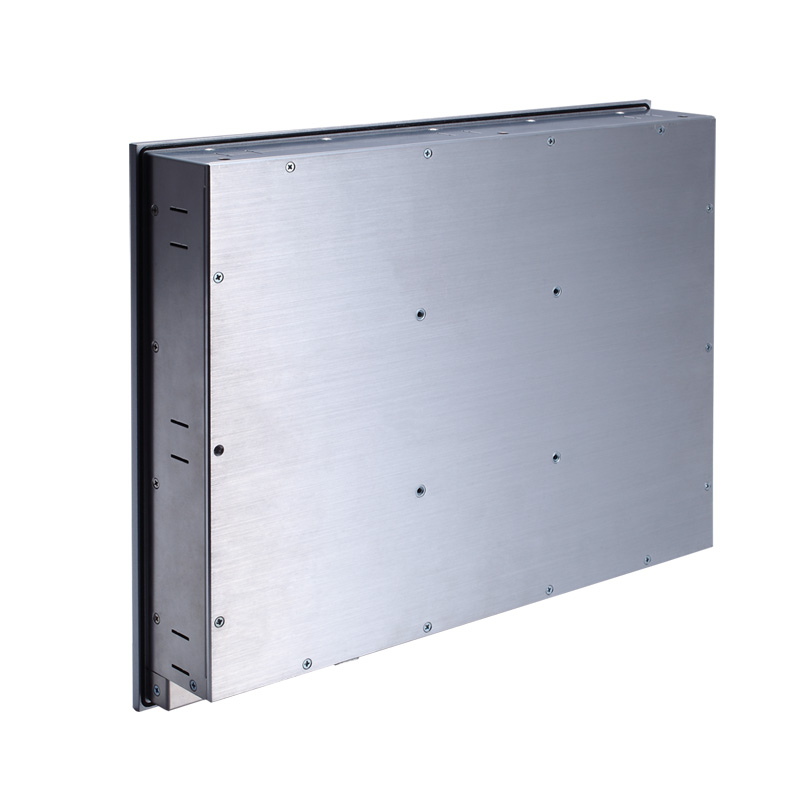

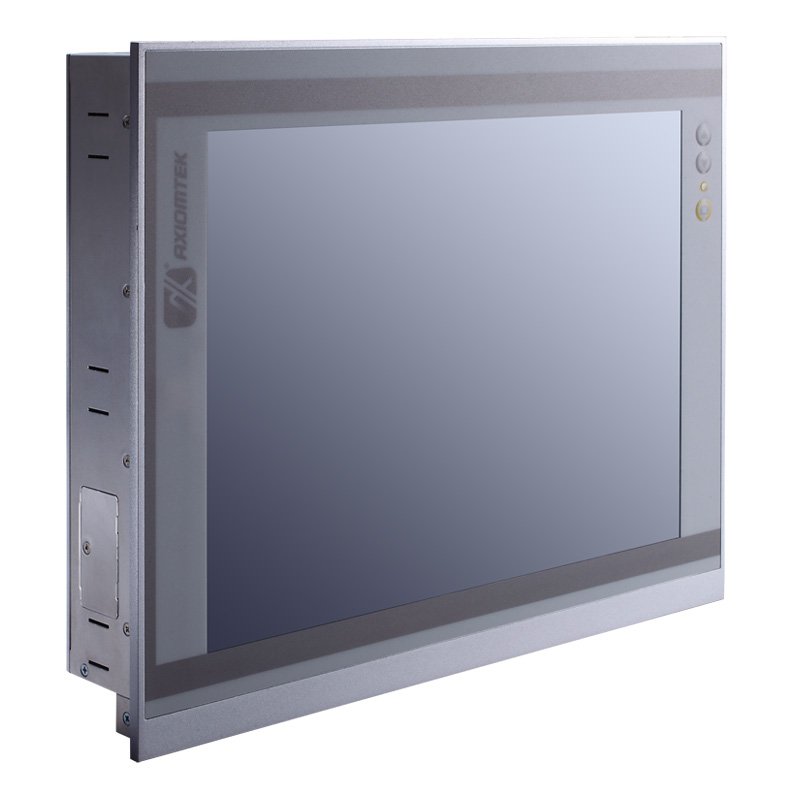

     The GOT3156T-834, a slim-type fanless touch panel computer supports the power-efficient 22nm Technology Intel® Atom™ Processor E3827 (1M Cache, 1.75 GHz). The GOT3156T-834 is equipped with a 15-inch XGA color TFT LCD display for clear visuals and has IP65-certified front bezel. The industrial panel system is designed to withstand a temperature range from -20°C to +55°C (-4⁰F to +131⁰F) and up to 2G of vibration with CFast™. This high performance human-machine interface is perfect for heavy-duty industrial environments including steel refineries, oil refineries, factory automation, internet of things related, and many more.

• GOT3156T-834-DC Data Sheet
