E-Catalog > Fanless Embedded > MXE-1501/M4G(EA)

PAGE VIEW : 1,039

Product Information :

Name :
MXE-1501/M4G(EA)
Category :
  1. คอมพิวเตอร์และอุปกรณ์ ซอฟแวร์ ฮาร์ดแวร์
Sub - Category :
  1. Fanless Embedded
Brand :
Adlink
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :

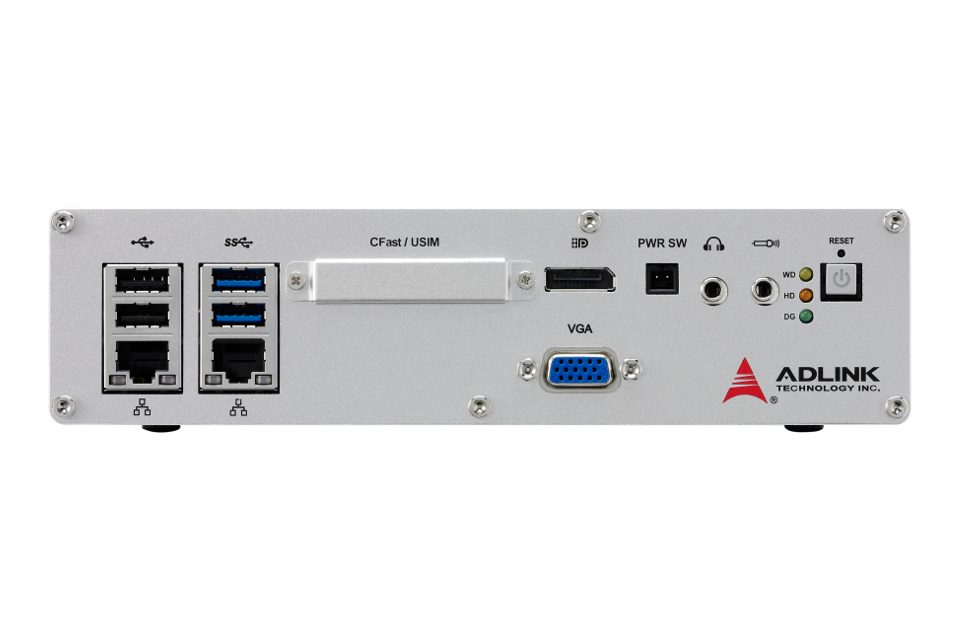

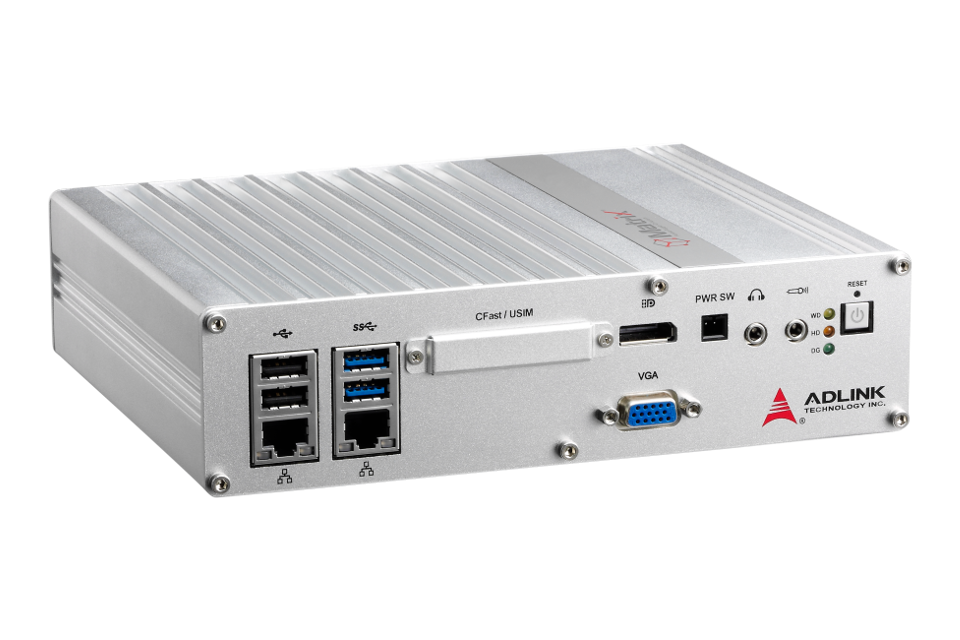

Intel® Celeron® N3160/ N3060 SoC Fanless Embedded Computer

Product Detail :

Introduction

     The successor to ADLINK's best-selling MXE-1300 Series, the MXE-1500 offers richer I/O interfaces, and more flexible I/O configurations in the same compact enclosure. Intel® Celeron®(Braswell) processors, Intel’s last generation of CPU to support Windows 7, power the MXE-1500 to a 90% increase in image processing capabilities over the previous generation, and support three independent displays, altogether delivering an unequaled price/performance ratio and making the MXE-1500 an ideal choice for industrial automation applications and mass transit operators.


Key Features

● Intel® Celeron® QC N3160/DC N3060 SoC processor
● DDR3L 2x SODIMM up to 8GB
● 3x independent displays: DP, VGA (Optional LVDS or DP)
● Built-in ADLINK SEMA management solution
● 3x GbE, 2x RS-232/422/485, 2x RS-232, 4x DI/ 4x DO
● Optional: extra 2x RS-232/422/485, TPM2.0, amplifier
● 2x USB 3.0, 5x USB 2.0, 1x 2.5" SATA, CFast, Mini PCIe, I2C
● Last generation to support Windows 7 OS
