Introduction

The MVP-5000 Series provides an optimal balance of price and performance in a compact construction. Incorporating 6th Generation IntelR Core? processors, the MVP-5000 features computing performance boosted by up to 30% over previous generation-processors. Integrating the front-mounted industrial I/O and fanless construction featured in ADLINK?s proven Matrix line, and rich LGA 1151 socket type CPU selection, the MVP-5000 Series is ideally suited to a wide variety of machine, factory, logistic automation, and general embedded applications.

Key Features

● Dual-channel DDR4 SO-DIMM sockets support up to 32 GB memory
● 6th Gen Intel® Core™ i7/i5/i3 processors and H110 chipset
● Support for 2x independent displays with 1x VGA, 1x DVI, and 2x DisplayPort
● 3x Intel® GbE ports with teaming function
● 2x software-programmable RS-232/422/485 + 2x RS-232 ports
● Front-mounted I/O for simplified installation and maintenance
● Extremely cost-effective, high performance fanless system

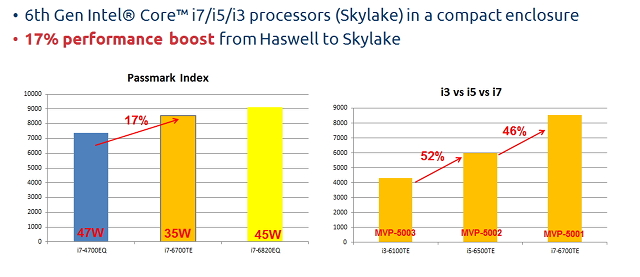

Value Family of Fanless Industrial PCs

The MVP-5000 Series provides an optimal balance of price and performance in a compact construction. Incorporating 6th Generation IntelR Core? processors, the MVP-5000 features CPU performance boosted by up to 17% over previous generation-processors.

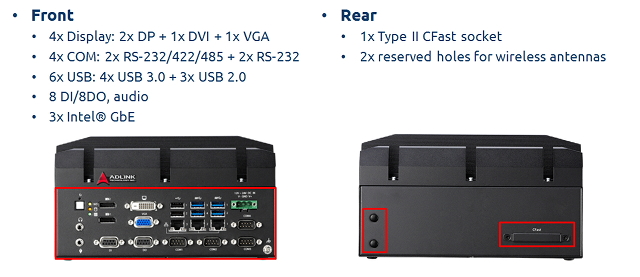

I/O Overview

With front-mounted I/O access benefit practically any industrial automation application that are in need of a rugged and compact platform with comprehensive I/O coverage. Dual independent displays are fully supported, with 1 VGA, 1 DVI and 2 DisplayPorts, 2 software-programmable RS-232/422/485 and 2 RS-232 ports, 3 IntelR GbE ports with teaming function, 6 external USB ports (4 USB 3.0 and 2 USB 2.0), and 8CH DI/O.

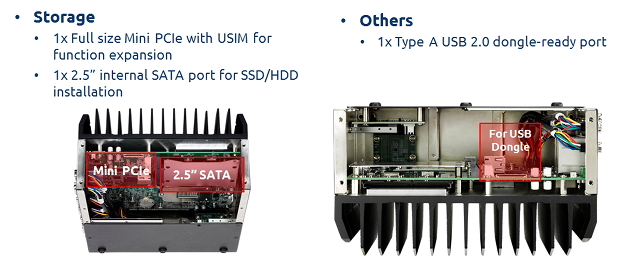

Internal Expandability
