E-Catalog > Light Industrial Panel PC > PPC1010-N97

Features:

• CPU:
  - Intel Alder Lake-N N97 CPU, 4E-Core, up to 3.60 GHz, TDP 12W
• RAM:
  - DDR4-3200 MHz, 1 x non-ECC SO-DIMM, up to 16GB

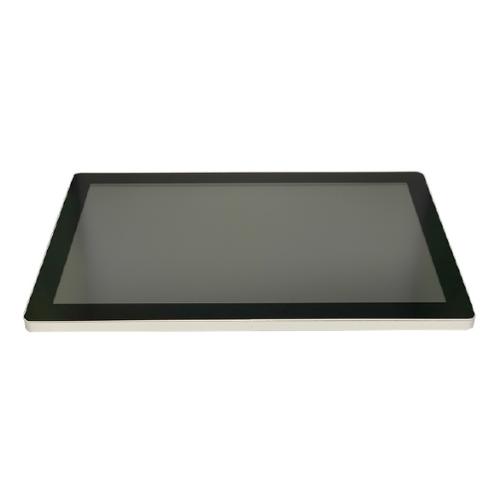

• Panel Size: 10.1"
• Resolution: 1280 x 800

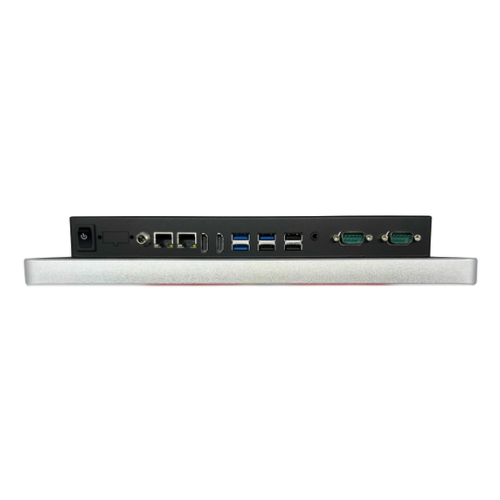

• I/O Port:
  - 6 x USB
  - 2 x COM
  - 2 x LAN
• Expansion:
  - 1 x M.2 (Key-M, 2280, PCIe x1 NVMe/ SATA) Auto Detect
  - 1 x M.2 (Key-E, 2230, PCIE + USB 2.0, support Wifi + BT module)
  - 1 x M.2 (Key-B, 2242/3052, USB 3.0 + USB 2.0, support 5G/4G)
  - 1 x SIM Card Wafer
• Display Output:
  - 1 x HDMI
  - 1 x DP++
• Luminance: 350 nits or 1000+ nits
• Touch Type:
  - True-Flat PCAP Touch (IP67 Front) or Resistive Touch
  - Anti-UV
  - Anti-IR protection
  - Optical Bonding (Optional)
• Working Temp: -20°C ~ 60°C
• OS Support:
  - Windows 10
  - Windows 11
  - Linux
