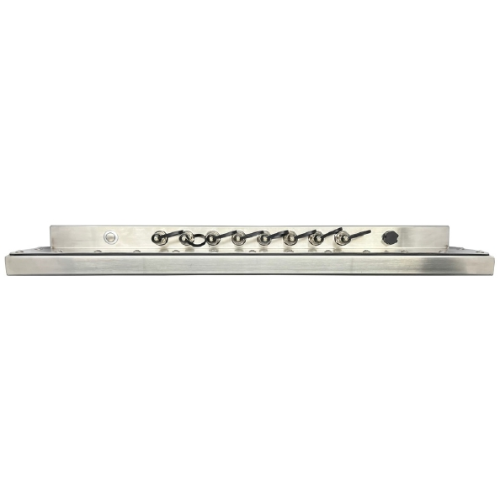

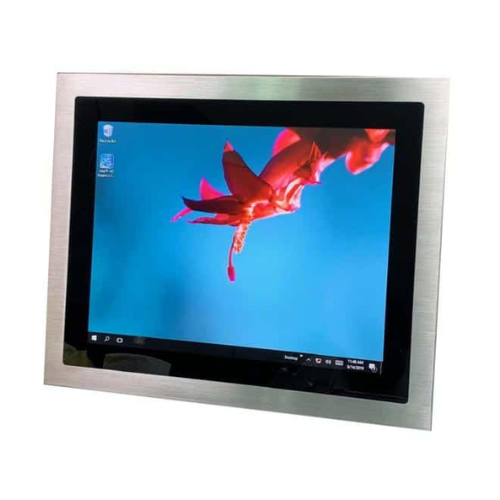

E-Catalog > Stainless Steel Panel PC > PPC1560-ALN-IP69K

Features:

• CPU:
  - Intel Alder Lake-N N97 CPU, 4E-Core, up to 3.60 GHz, TDP 12W, (N95/N100/i3-N305 CPU Optional)
• RAM:
  - DDR4-3200 MHz, 1 x non-ECC SO-DIMM, up to 16GB
• Panel Size: 15.6"
• Resolution: 1366 x 768 or 1920 x 1080 (Optional)
• I/O Port:
  - 6 x USB
  - 2 x COM
  - 2 x LAN
  - 1 x DC-In 12/19/24V
  - 1xSATA3.0
• Expansion:
  - 1 x M.2 (Key-M, 2280, PCIe x1 NVMe/ SATA) Auto Detect
  - 1 x M.2 (Key-E, 2230, PCIE + USB 2.0, support Wifi + BT module)
  - 1 x M.2 (Key-B, 2242/3052, USB 3.0 + USB 2.0, support 5G/4G)
  - 1 x SIM Card Wafer
• Luminance:
  - 250nits or 1000+ nits (Optional sunlight readable)
• Touch Type:
  - True-Flat PCAP Touch or Resistive Touch (Optional)
  - Anti-UV
  - Anti-IR protection
  - Optical Bonding (Optional)
• IP Rating:
  - Full IP69K/IP68 Stainless steel housing
• Working Temp: ‐20°C~ +60°C
• OS Support:
  - Windows 10 / Windows 11
  - Linux
