E-Catalog > Stainless Steel Panel PC > PPC1040-ALP-IP69K

Features:

• CPU:
  - Intel Alder Lake-P i3-1215U/i5-1235U/i7-1255U, TDP default is 15W
• RAM:
  - DDR4-3200 MHz, 1 x non-ECC SO-DIMM, up to 32GB

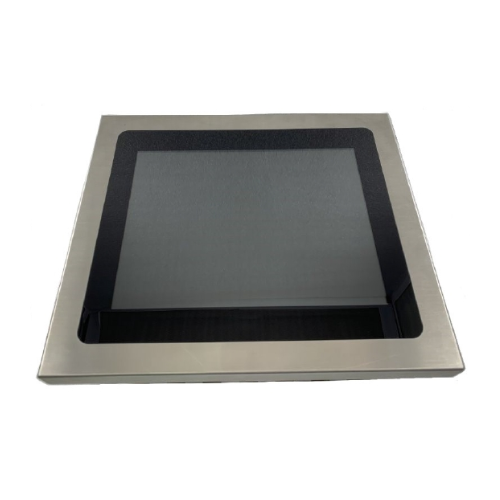

• Panel Size: 10.4"
• Resolution: 1024 x 768

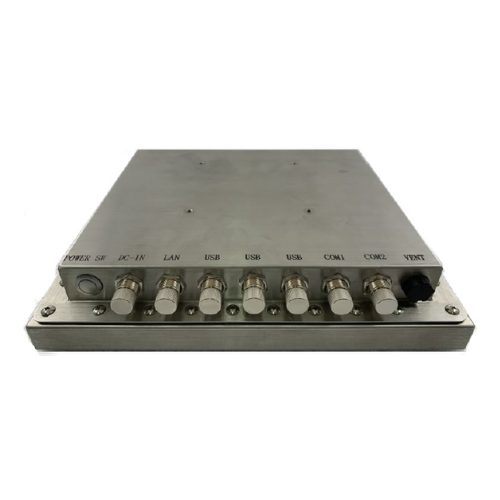

• I/O Port:
  - 6 x USB
  - 2 x COM
  - 2 x LAN
  - 1 x DC-In 12/19/24V
• Expansion:
  - 1 x M.2 (Key-M, 2280, PCIe x1 NVMe/ SATA) Auto Detect
  - 1 x M.2 (Key-E, 2230, PCIE + USB 2.0, support Wifi + BT module)
  - 1 x M.2 (Key-B, 2242/3052, USB 3.0 + USB 2.0, support 5G/4G)
  - 1 x SIM Card Wafer
• Luminance:
  - 350nits or 1000+ nits (Optional sunlight readable)
• Touch Type:
  - True-Flat PCAP Touch or Resistive Touch (Optional)
  - Anti-UV
  - Anti-IR protection
  - Optical Bonding (Optional)
• IP Rating: Full IP69K/IP68 Stainless steel housing
• Working Temp: ‐20°C~ +60°C
• OS Support:
  - Windows 10/Windows 11
  - Linux
