Overview

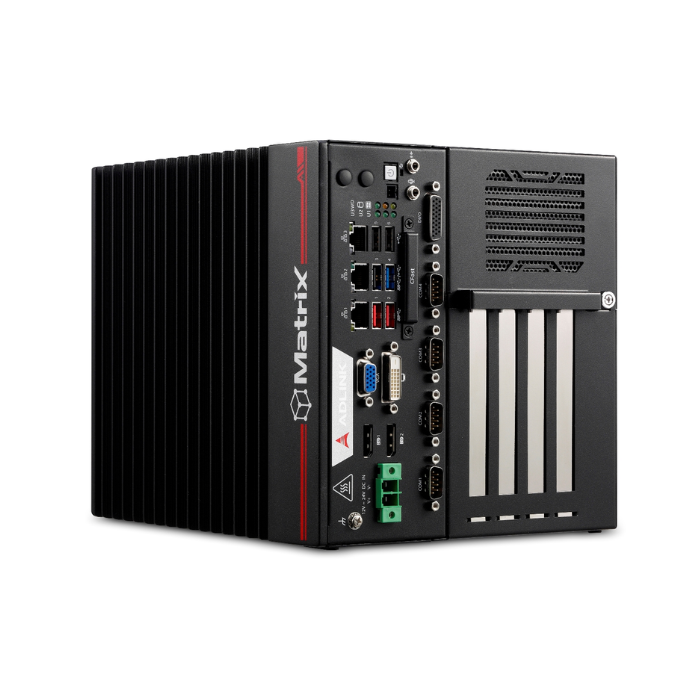

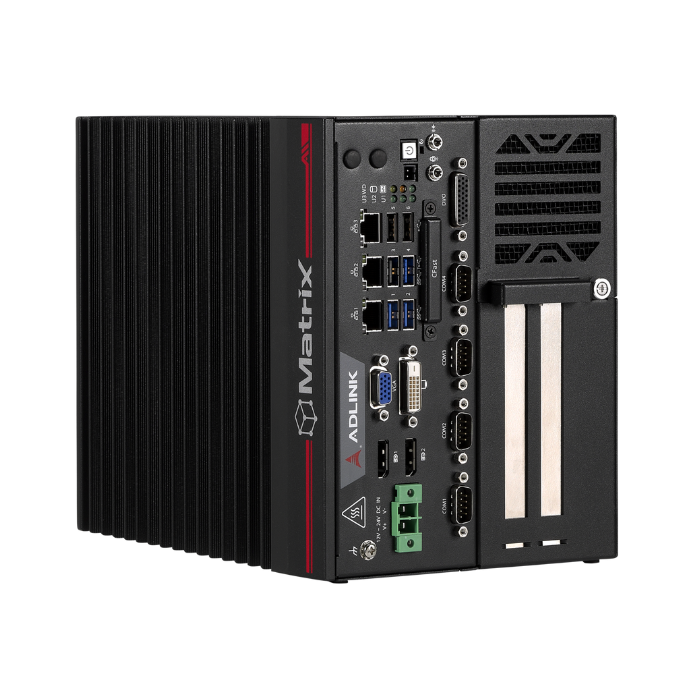

ADLINK’s MVP-6100 Series of value line fanless embedded computing platforms, incorporating Intel® Core™/Xeon®/Celeron® processors, provides one PCIe x16 and one PCI slot, one mini-PCIe slot and single-side access for I/O ports, optimizing easy maintenance in industrial automation environments. The series retains the robust design of all ADLINK MXC/MXE lines, at a new extremely cost-effective price point.

The MVP-6100 series supports DDR4 memory for more powerful computing and the Intel® HD Graphics 630 speeds graphics performance. Along with a versatile I/O array and flexible expansion capacity, the MVP-6100 Series fully satisfies all the needs of industrial automation (IA) with the performance demanded by vision inspection, motion control, and surveillance applications. Fanless construction not only overcomes contaminant and noise challenges presented by harsh IA environments, the elimination of problematic structural elements that negatively affect MTBF greatly increases lifecycle expectations for the platform.

Key Features

• NVIDIA Qualified System
• 9th Gen Intel® Xeon®/Core™ i7/i5/i3 & 8th Gen Celeron® LGA processor
• Dual SODIMMs for up to 32GB DDR4 non-ECC/ ECC memory
• Rich I/O: 2x DP++/ DVI/ VGA/ 3x GbE/ 4x COM/ 8-ch DI/ 8-ch DO/TPM2.0
• 2x USB 3.1 Gen2 + 1x USB 3.1 Gen1 + 3x USB 2.0
• Rich storage: up to 4x 2.5" SATA, CFast, M.2 2280
• Embedded Expansion: Mini PCIe/ M.2 3042/ 2x USIM
• Front accessible I/O and adaptive Function Module v.2 option & Flexible modular expansion with 2 or 4 slots
