Product Information :

Name :
PCI-9816H/512
Category :
  1. คอมพิวเตอร์และอุปกรณ์ ซอฟแวร์ ฮาร์ดแวร์
Sub - Category :
  1. GPIB
Brand :
Adlink
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
4-CH 16-Bit 10/20/40 MS/s PCI Digitizers with 512 MB Memory

Product Detail :

Key Features

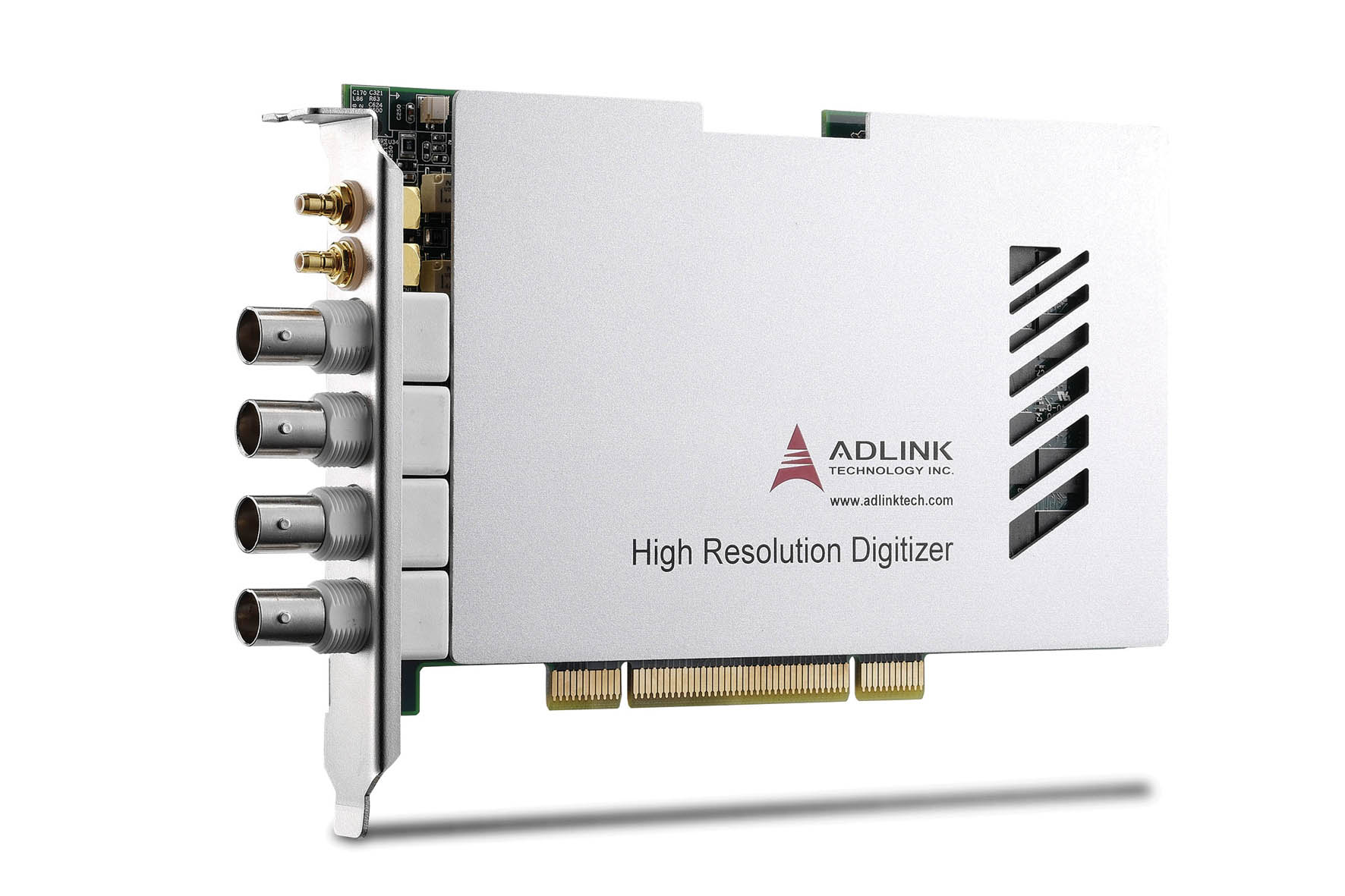

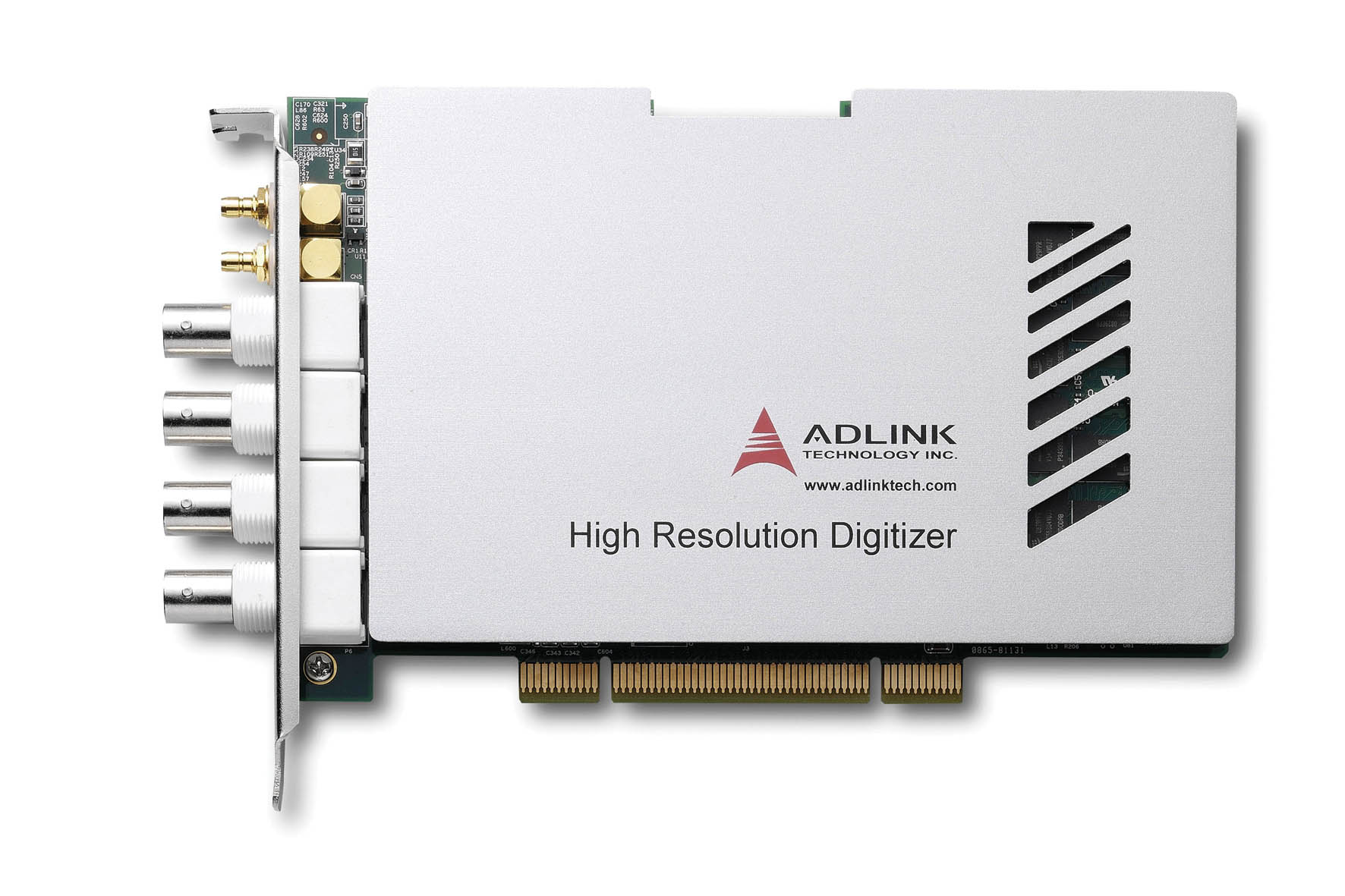

● Standard height, half length PCI form factor
● 4-CH simultaneous single-ended AI
● 16-bit high resolution A/D converter
● Up to 10MS/s, 20MS/s and 40MS/s per channel
● 512MB on-board memory for data storage
● Software selectable 50Ω or 1 MΩ input impedance
● Programmable input voltage range: ±1 V, ±0.2 V and ±5V, ±1V
● Multiple module synchronization via SSI


Introduction

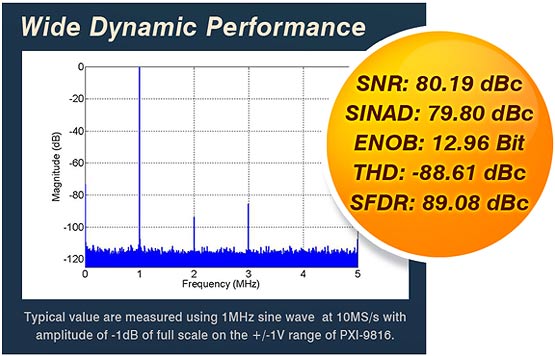

     The ADLINK PCI-9816/9826/9846 are 10MS/s, 20MS/s, 40MS/s sampling 16-bit 4-CH digitizers designed for digitizing high frequency and wide dynamic range signals with an input frequency up to 20 MHz. The analog input range can be programmed via software to ±1 V or ±0.2 V and ±5 V or ±1 V. With a deep onboard acquisition memory up to 512 MB, the PCI-9816/PCI-9826/PCI-9846 are not limited by the data transfer rate of the PCI bus to enable the recording of waveforms for extended periods of time. The PCI-9816/PCI-9826/PCI-9846 are equipped with four high linearity 16-bit A/D converters ideal for demanding applications with a high dynamic range such as radar, ultrasound, and software-defined radio.
