E-Catalog > GPIB > LPCI-3488A

PAGE VIEW : 1,148

Product Information :

Name :
LPCI-3488A
Category :
  1. คอมพิวเตอร์และอุปกรณ์ ซอฟแวร์ ฮาร์ดแวร์
Sub - Category :
  1. GPIB
Brand :
Adlink
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
Low-profile High-Performance IEEE488 GPIB Interface for PCI Bus

Product Detail :

Key Features

● Supports a 32-bit 3.3V or 5V PCI bus
● Low-profile PCI MD1 form factor
● Fully compatible with IEEE 488 standard
● Up to 1.5MB/s data transfer rates
● Built-in 2 KB FIFO for read/write operations
● Provides APIs compatible with NI-488.2* driver software
● Supports industrial-standard VISA library
● Interactive utility for testing and diagnostics


Introduction

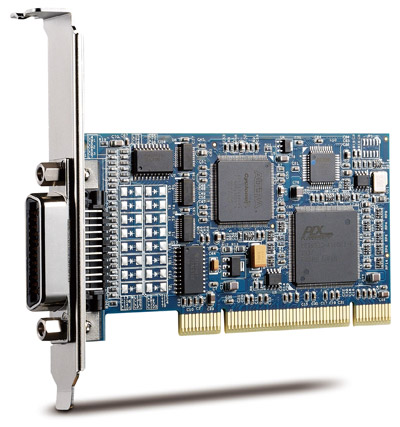

     ADLINK LPCI-3488A GPIB controller interface card, fully compatible with the IEEE 488 instrumentation control and communication standard, is capable of controlling up to 14 stand-alone instruments via IEEE 488 cables. It is designed to meet the requirements for high performance and maximum programming portability. The built-in 2KB FIFO and a block transfer mode provide up to 1.5 MB/s GPIB transfer rate. With the APIs that are compatible with NI-488.2* and VISA support, the LPCI-3488A provides the greatest compatibility with your existing applications and instrument drivers. (* NI-488.2 mentioned here is the trademarks and properties of National Instruments Corporation.)
