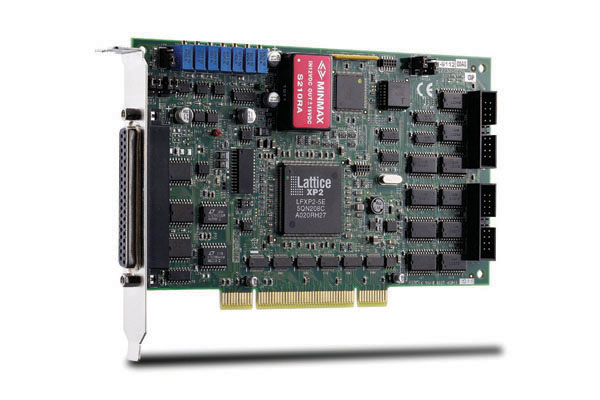

E-Catalog > DAQ Cards > PCI-9112

Features

• Supports a 3.3 V or 5 V PCI bus

• 12-bit A/D and sampling rate up to 110kS/s

• 16-CH single-ended or 8-CH differential inputs

• On-board A/D FIFO

• Bipolar or unipolar analog input ranges

• 16-CH TTL DI and 16-CH TTL DO

• 2-CH 12-bit multiplying analog outputs

Software Support

Windows Drivers

ADLINK Task-oriented SDK for Windows  More Info  Free Download Windows Drivers for ADLINK DAQ Cards PCIS-DASK D2K-DASK WD-DASK UD-DASK    More Info about Windows 7 Support

Windows Drivers Libraries for ADLINK ISA-bus DAQ Cards ACLS-DLL1 ACLS-DLL2

> top

Linux Drivers

Linux Drivers for ADLINK DAQ Cards PCIS-DASK/X D2K-DASK/X WD-DASK/X    More Info

> top

Third-party Software Support

LabVIEW™ Data Acquisition VI Set for ADLINK DAQ Cards  More Info  Free Download VEE™ Interface for ADLINK DAQ Cards PCIS-VEE D2K-VEE

MATLAB® Data Acquisition Toolbox Adapter for ADLINK DAQ Cards  More Info  Free Download

> top

Applications for Test and Measurement

Configuration-Based Data Logger for ADLINK DAQ Cards  More Info  Free Download Configuration-Based Device Manager for ADLINK DAQ Cards  More Info  Free Download

> top

Componentware/ActiveX Control

32-Bit ActiveX Controls for Measurement and SCADA/HMI

> top

Order Information

PCI-9112 16-CH 12-Bit 110 kS/s Multi-Function DAQ Card PCI-9112A 16-CH 12-Bit 110 kS/s Multi-Function DAQ Card (AO Calibrated on 10V) Accessory ACL-10137-1MM 37-Pin D-sub male/male Cable, 1M DIN-37D-01 ermination Board with a 37-pin D-sub Connector and DIN-Rail MountingTermination Board with a 37-pin D-sub Connector and DIN-Rail Mounting (without cable)   DIN-20P-01 Terminal Board with One 20-pin Ribbon Connector and DIN-Rail Mounting ACLD-9137-01 General-Purpose Terminal Board with One 37-pin D-sub Male Connector ACLD-9138-01 General-Purpose Terminal Board with One 37-pin D-sub Connector ACLD-9182A-01 Terminal Board with 16-CH Isolated Digital Inputs ACLD-9185-01 Terminal Board with 16-CH Isolated Digital Inputs ACL-10137-1MF 37-pin D-sub male/female cable, 1M ACL-10120-1 20-pin flat cable, 1M ACL-10237-1 37-pin D-sub male/male flat cable, 1M

• PCI-9112 Data Sheet
