Product Information :

Name :
USB-7230
Category :
  1. คอมพิวเตอร์และอุปกรณ์ ซอฟแวร์ ฮาร์ดแวร์
Sub - Category :
  1. DAQ
Brand :
Adlink
Model :
USB-7230
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
16 CH Isolated DI & 16 CH Isolated DO USB Module

Product Detail :

Key Features

  • USB 2.0, USB bus powered
  • Programmable digital filter removes unexpected glitches from input channels
  • Programmable DO/Relay initial status
  • 32-CH isolated digital I/O (USB-7230), 8-CH relay output, 8-CH isolated DI (USB-7250)
  • 2-CH frequency/event counters (USB-7230/7250)
  • Up to 2500 VRMS isolation voltage
  • Ready-to-use testing application (U-Test) provided
  • Supported Operating System: Windows 7/10, Linux

Introduction


The USB-7230/7250 USB-based digital I/O modules feature high voltage on/off control and monitoring, and isolation voltage supported up to 2500VRMS. The USB-7230 provides 32-CH isolated digital I/O and 2-CH frequency/event counters. The USB-7250 provides 8-CH relay output (4 form C and 4 form A), 8-CH isolated DI, and 2-CH frequency/event counters.

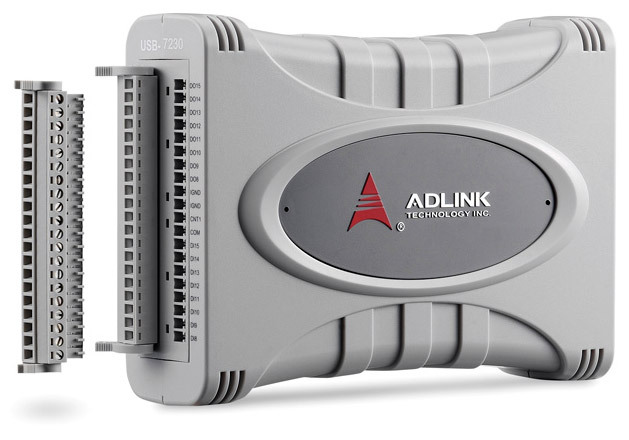

The USB-powered USB-7230/7250 features removable screw-down terminals for easy device connectivity, and the included multi-functional stand fully supports desktop, rail, or wall mounting.


The USB-7230/7250 is suitable for industrial I/O control applications requiring high voltage and superior protection. High isolation voltage protects against damage from accidental contact with external voltages and eliminates troublesome ground loops. U-Test, a free ready-to-use testing program, is included to enable operation or testing of all ADLINK USB DAQ series functions with no programming requirement.



OS Information
- Windows 7/10, Linux


Software Compatibility
- LabVIEW
- MATLAB
- C/C++
- Visual Studio.NET


Software Recommendations

- U-Test
