Product Information :

Name :
EasyImage
Category :
  1. คอมพิวเตอร์และอุปกรณ์ ซอฟแวร์ ฮาร์ดแวร์
Sub - Category :
  1. Vision
Brand :
Euresys
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
Image processing library

Product Detail :

Key Features

● Set of optimized fundamental image processing and analysis functions
● Convolution and morphology
● Geometric transformations
● Histogram computation and analysis
● Noise estimation and reduction
● HDR (High Dynamic Range) image fusion


EasyImage Description

  • EasyImage includes operations usually performed as pre-processing steps to improve the image quality and obtain a good contrast between the background and the objects to be inspected.
  • EasyImage supports gray-level and color images. Selected morphology functions are also optimized for binary (1-bit per pixel) and bi-level images.
  • EasyImage includes numerous image processing functions, such as enhancement and restoration by linear or non-linear filtering, arithmetic and logic operations, geometric transformations for image registration, histogram analysis for thresholding, projection, ...

EasyImage includes the following functions:

  • Gain / Offset change: Normalization, Uniformization, Lookup table mapping
  • Thresholding: Automatic thresholding, Min residue, max entropy, isodata, Manual thresholding; Single threshold (absolute and relative), Double threshold, Histogram-based threshold
  • Arithmetic operations: Addition, Subtraction, Multiplication, Division, Copy, Invert, Module, Shift
  • HDR (High Dynamic Range) image fusion
  • Logical and bitwise operations: AND, OR, XOR, NOT
  • Pixel comparison, Minimum, maximum
  • Histogram equalization

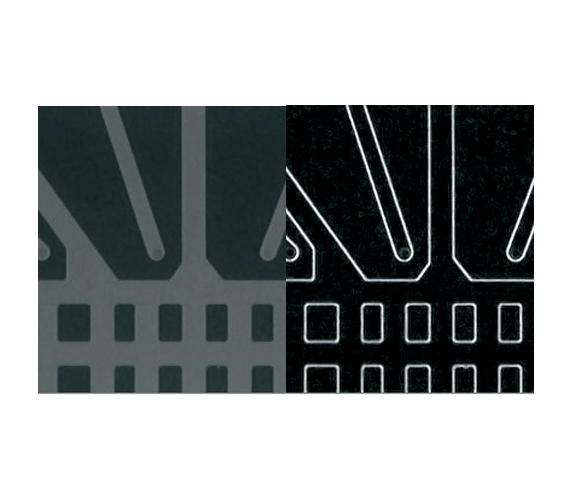

  • Linear filtering: Edge detection (Laplacian, Gradient, Prewitt, Sobel, Roberts filters), Sharpening, Smoothing (Gaussian and uniform filters). Custom kernel filtering: Kernel creation and management functions.
  • Non-linear filtering: Morphological operators (Erosion, Dilation, Opening, Closing, Thinning, Thickening, Top-hat filter, Hit-and-miss transform, Morphological distance), Median filter
  • Geometric transformations: Image registration (alignment), Horizontal and vertical mirroring, Translation, scaling and rotation with optional interpolation, LUT-based (un)warping
  • Vector operations, Projection, Profile sampling (line segment, path, contour) and analysis
  • Statistics: Measurement of Area, Binary moments, Weighted moments, Gravity center, Pixel count and pixel statistics, Minimum and maximum gray-level value, Average, variance and standard deviation
  • Histogram computation and analysis
  • Image focusing
  • Noise estimation and reduction: Spatial noise reduction (Convolution, Median filters), Temporal noise reduction (Recursive average, Moving average, Average), Noise estimation (Root-mean-square noise, Signal-to-noise ratio)
  • Elimination of the interlaced images artifacts by rebuilding or re-aligning fields
  • Feature point detectors: Harris corner detector, Canny edge detector
  • Other operations: Overlay, Scalar gradient
