Product Information :

Name :

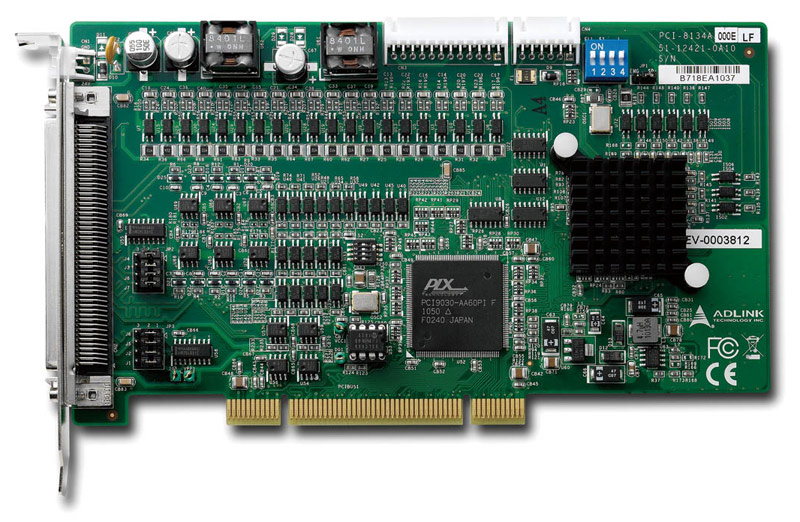

PCI-8134A
Category :
  1. คอมพิวเตอร์และอุปกรณ์ ซอฟแวร์ ฮาร์ดแวร์
Sub - Category :
  1. Motion Cards
Brand :
Adlink
Model :
PCI-8134A
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
Entry-level 4-axis Servo & Stepper Motion Controller

Product Detail :

Features
  • Pulse output rates up to 2.4 MHz
  • Pulse output options: OUT/DIR, CW/CCW
  • 2 axes linear interpolation
  • Programmable acceleration and deceleration time
  • Easy interface to any stepping motors, AC or DC servo, linear or rotary motors
  • 28-bit up/down counter for incremental encoder
  • Dedicated I/O interface for PEL, MEL, ORG, EZ, INP, ERC, ALM
  • Manual pulser input interface

The PCI-8134A is a 4-axis entry-level motion controller. A PCI interface provides plug-and-play capability for easy maintenance, and supports up to 12 cards in one system, to control 48 motors. The PCI-8134A provides pulse train command output up to 2.4MHz and encoder input up to 2.4MHz in 4xAB phase mode. Programmable acceleration and deceleration allows flexible programming of in-house applications, and dedicated motion I/Os shorten system installation. The PCI-8134A also supports 2~4 axis linear interpolation for simplified synchronous motion. The PCI-8134A is a cost-effective motion controller enabling implementation and control of most of point-to-point, conveyer, and load-and-unloader applications.


Software Support

Windows 7/Vista (32-bit)/XP/2000


PCI-8134A Entry-level 4-axis servo& stepper motion controller
Accessory
DIN-100S-01 Terminal board with one 100-pin SCSI-II connector and DIN-rail mounting
DIN-814-GP Terminal board with 100-pin SCSI-II connector for general purpose
DIN-814M0 Terminal board for Mitsubishi MR-J2S-A servo amplifier
DIN-814M-J3A0 Terminal board for Mitsubishi MR-J3A servo amplifier
DIN-814Y0 Terminal board for Yaskawa Sigma II/III/V amplifier
DIN-814P-A40 Terminal board for Panasonic MINAS A4 servo amplifier
