E-Catalog > High Performance Touch Panel PC > PPC1508R-H110

Features:

• CPU:
  - Intel 6th/7th Skylake/Kaby Lake LGA1151 Socket Processor TDP Max. 65W
• RAM:
  - 2 x 260-pin DDR4 1866/2133MHz SO-DIMM, up to 32GB

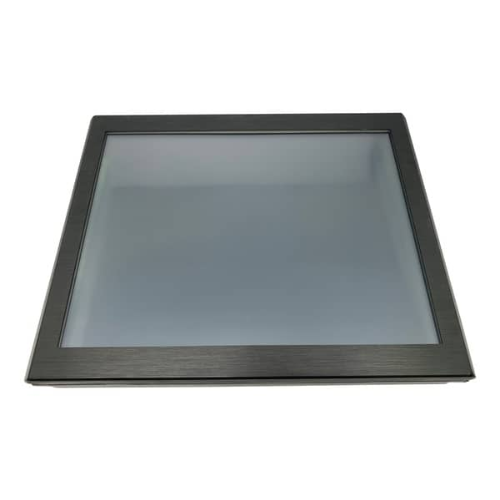

• Panel Size: 15"
• Resolution: 1024 x 768

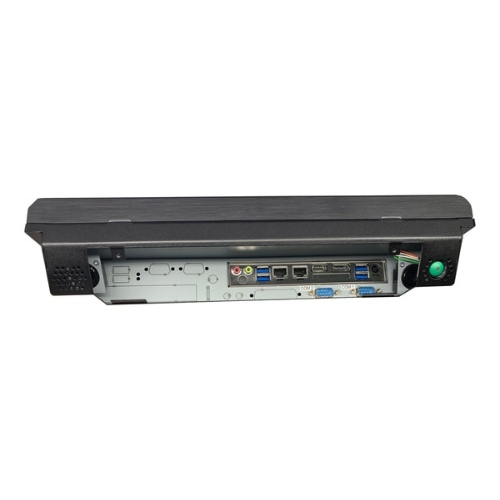

• I/O Port:
  - 6 x USB
  - 2 x COM
  - 2 x LAN
  - 3 x SATAIII
• Expansion:
  - Mini PCIe Half size (PCIe/USB)
  - Mini PCIe Full / Half size (PCIe/USB/SATA)
  - PCIe x4 (Gen. 3) slot
• DIO/GPIO: Programmable support 10-bit GPIO
• Display Output:
  - 1 x DP
  - 1 x HDMI
• Luminance: 200 nits or 1000 nits (Optional)
• Touch Type: Resistive Touch or PCAP Touch (Optional, base on requirement)
• Working Temp: -20°C ~ 60°C
• OS Support:
  - Windows 7
  - Windows 8
  - Windows 10 IoT
  - Linux
