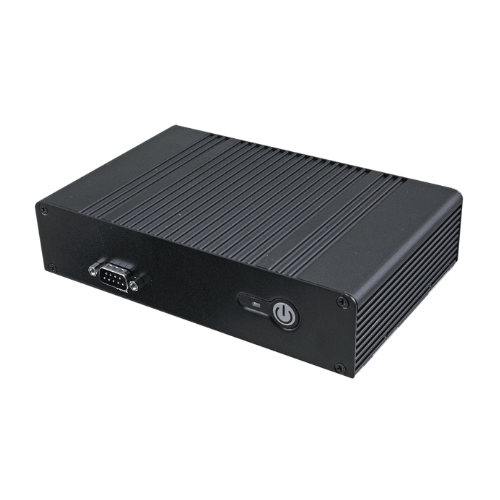

E-Catalog > Fanless Tiny System > EPC-BYT2

Features

• Intel® Celeron® Processor J1900
• Intel® Valleyview D SoC
• One 204-pin SODIMM Socket Up to 8GB DDR3L 1333MHz SDRAM
• Rich I/O, 1 VGA, 1 HDMI,1 COM/2COM, 2 LAN, 4 USB, 2 Antenna mounting
• Expansion Slot Supports 2 Mini PCIe Slot
• Wide Range DC Power Input from 12 ~ 26V
• Fanless Operating from -10 ~ 45°C
• Compact Size, 175mm x 110mm x 40mm
• Optional Wall Mount Kit / VESA / DIN-Rail
• Supports TPM 1.2 (Factory Option)

Specifications

• CPU: Intel® Celeron® Processor J1900
• Memory: One 204-pin SODIMM Socket Up to 8GB DDR3L 1333MHz SDRAM
• TPM: TPM 1.2 (FactoryOption)

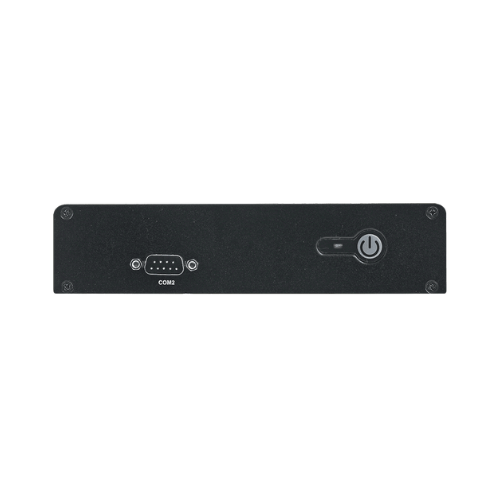

• I/O Port (Front) :
  - 1xPWR button

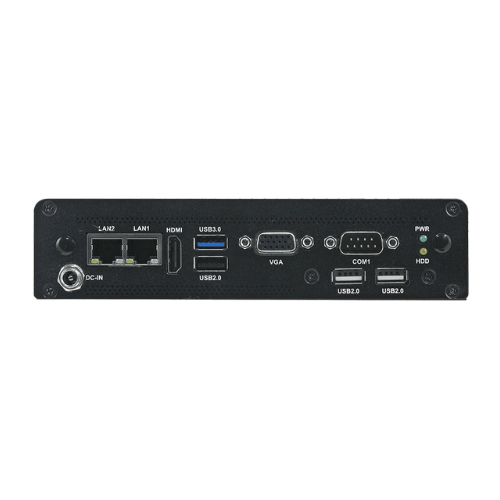

• I/O Port (Rear) :
  - 1xVGA,1xHDMI
  - 1xRS232/RS422/485
  - 1xDC IN
  - 2xGb LAN
  - 2xLED
  - 4xUSB
• Expansion Slot:
  - 2xMini-PCIe Slot
• Storage Device:
  - 1x2.5” Drive Bay

• Power Supply:
  - Power Range: 12~26Vdc
  - 60W Adapter as default, PWR cord as option
  - Adapter PN: ACC-ADP-060N-08R
  - Power cord: depends on regions
• Operating Temp. : 0 ~ 50°C (32 ~ 122°F)
• Dimension  (W x L x H) : 175mm x 110mm x 40mm
• Certification: CE, FCC Class A, UKCA
• IP Rating: IP40 (Factory Option)
