Overview

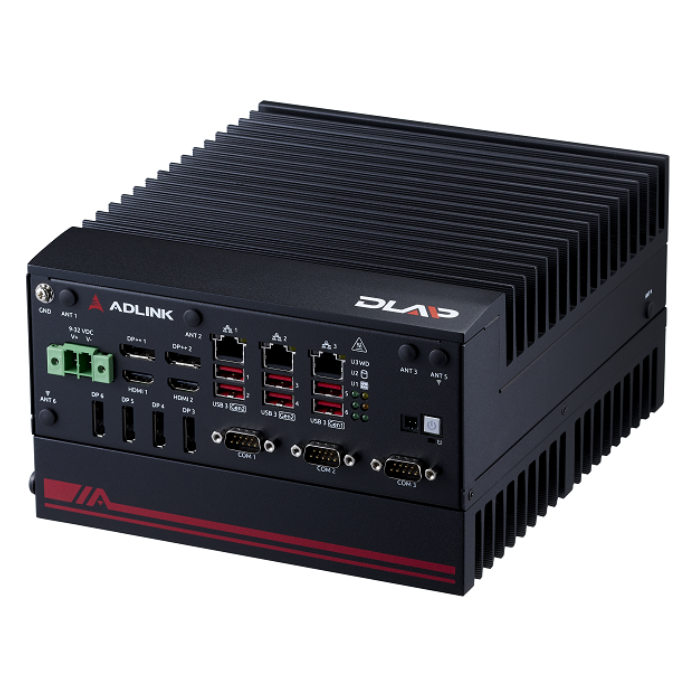

The DLAP-5200 industrial AI computers are powered by 13th/12th Gen Intel® Core™ i9/i7/i5/i3 processors. Featuring the Intel R680E chipset and supporting up to 65W, these computers can also incorporate GPU cards in a rugged package suitable for AI inferencing at the edge. They can be used for, but are not limited to, smart manufacturing, semiconductor equipment, and warehouse applications.

Key Features

• Up to 196GB DDR5 4800MHz Memory.
• Supports MXM 3.1 Type A/B form factor GPU module.
• User-friendly front-accessible I/O ports.
• Microsoft® Windows® 10 IoT and Linux® Ubuntu 22.04
• Rugged, fanless design for 24/7 operation

Features

• 13th/12th Generation Intel® Core™ i9/i7/i5/i3 FCLGA1700 processor and R680E chipset
• 4x DDR5 SODIMM socket, supporting up to 128GB DDR5 3600 SODIMM module

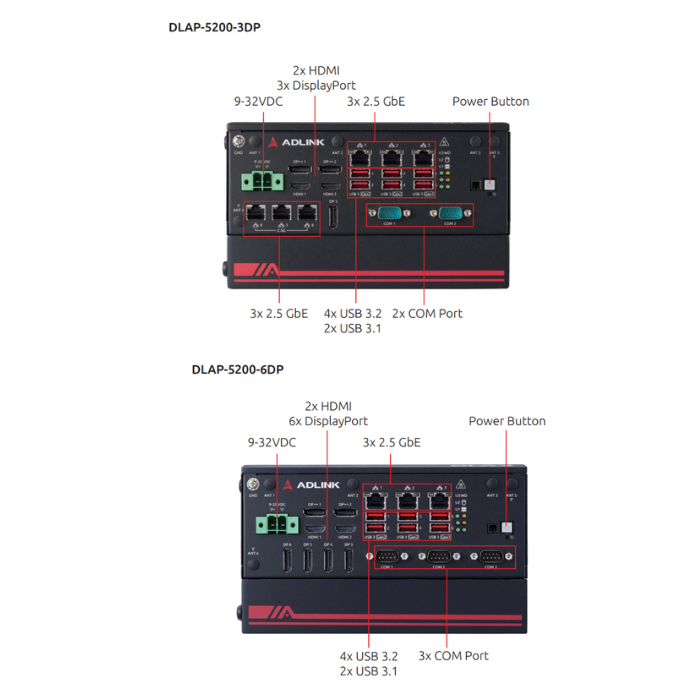

• 3x DisplayPort, 2x HDMI, supporting 4 independent displays
• 6x External USB ports (4x USB 3.2 Gen 2, 2x USB 3.2 Gen 1)
• 6x Intel 2.5Gbe i225 LAN ports with TSN support
• 2 software-programmable RS-232/422/485
• Onboard SATA 6Gb/s port for 2.5” SSD installation
• Supports MXM 3.1 Type A/B form factor GPU module
