E-Catalog > Rugged Panel PC > ARC-1538-C1

Features:

• 11th Generation Intel® Core™ i3/i5/i7 Processors (Non-embedded CPU)
• 2 x LAN, 3 x USB3.2 Gen2, 1x USB3.2 Gen1
• 1 x RS232/422/ 485(default), 2 x RS232(default)
• Wi-Fi & BT & 5G (optional)
• TPM 2.0
• 10 points multiple PCAP touch (option for 5-wire Resistive)
• 2 x 260-pin DDR4 3200 MHz SO-DIMM socket, supports up to 64GB max
• 3 x RS232 or GPIO or USB2.0 (optional)
• Front panel IP65

Specifications:

• CPU:
  - 11th Generation Intel® Core™ i3/i5/i7 Processors(Non-embedded CPU)
• RAM:
  - 2 x 260-pin DDR4 3200 MHz SO-DIMM socket, supports up to 64GB max
• Panel Size: XGA
• Ratio: 4:3
• Resolution: 1024 x 768

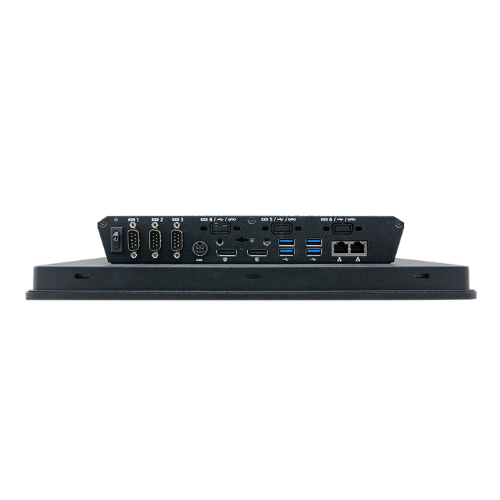

• I/O Port:
  - 4xUSB
  - 1xSATA
  - 3xCOM
  - 2xLAN
• Expansion:
  - 1 x M.2 Key B+M with 1 x SIM card slot, support WWAN+GNSS
  - 1 x M.2 Key E 2230
• Display Output: 2 x DP++

• Luminance: 350 cd/m²
• Touch Type: PCAP Multi Touch
• IP Rating: Front panel IP65
• Working Temp: -10°C ~ 50°C
• OS Support:
  - Windows 10, Windows 11
  - Linux
• Optional:
  - 3 x RS232 or GPIO or USB2.0 (optional)
  - 10 points multiple PCAP touch (option for 5-wire Resistive)
  - Wi-Fi & BT & 5G (optional)
