Short Description :

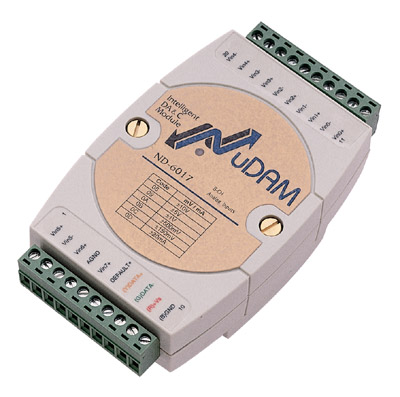

8-CH Analog Input Module

Product Detail :

Key Features

● Channels: 6 Differential & 2 Single-ended
● Input Type: mV, V and mA
● Input Range: ± 150 mV, ± 500 mV, ± 1 V,± 5 V, ± 10 V
● Current Range: ± 20 mA
● Isolation Voltage: 2500 VRMS



     ADLINK's NuDAM data acquisition modules make up a total acquisition network and control system. Up to 256 NuDAM modules an be romotely controlled on any RS-485 network from a host computer, via a single serial RS-232, allowing communication from as far as 4000 feet from the host. Based on the RS-485 multi-drop network system, each module has a unique address ID, whereby simple ASCII command & response protocols through the standard RS-485 interface can control all the NuDAM modules in the RS-485 network. The NuDAM modules provide direct communications with a wide variety of sensors, perform all signal conditioning, scaling, linearization and conversion, and can acquire measurements of temperature, pressure, flow, voltage, current, and multiple digital signal types.

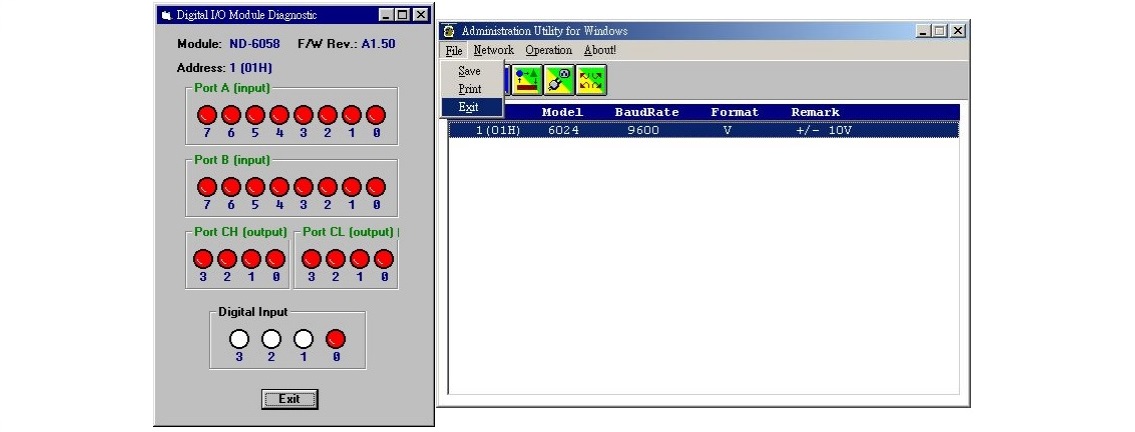

แถม Free โปรแกรม ADLINK NuDAM Admin Utility สำหรับใช้ทดสอบสภาวะการทำงานโมดูล
