E-Catalog > Networking > EDS-518A

Features and Benefits

● 2 Gigabit plus 16 Fast Ethernet ports for copper and fiber
● Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
● TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
● Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01

Introduction

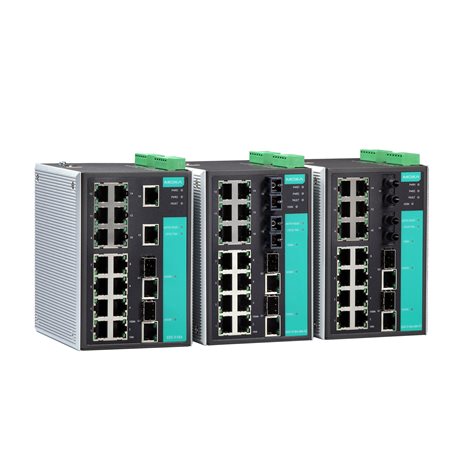

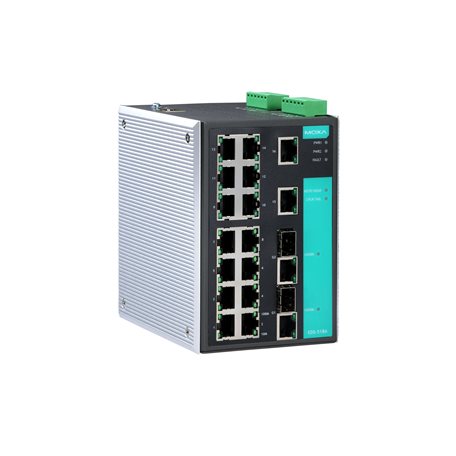

     The EDS-518A standalone 18-port managed Ethernet switches provide 2 combo Gigabit ports with built-in RJ45 or SFP slots for Gigabit fiber-optic communication. The Ethernet redundancy technologies Turbo Ring and Turbo Chain (recovery time < 20 ms) increase the reliability and speed of your network backbone. The EDS-518A switches also support advanced management and security features.

Additional Features and Benefits

• Command line interface (CLI) for quickly configuring major managed functions

• DHCP Option 82 for IP address assignment with different policies

• Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring

• Compatible with PROFINET protocol for transparent data transmission

• Supports the ABC-01-USB (Automatic Backup Configurator) for system configuration backup

• IGMP snooping and GMRP for filtering multicast traffic

• Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

• QoS (IEEE 802.1p and TOS/DiffServ) to increase determinism

• Port Trunking for optimum bandwidth utilization

• SNMPv1/v2c/v3 for different levels of network management

• RMON for proactive and efficient network monitoring

• Bandwidth management to prevent unpredictable network status

• Automatic warning by exception through email and relay output

• EDS-518A Data Sheet
