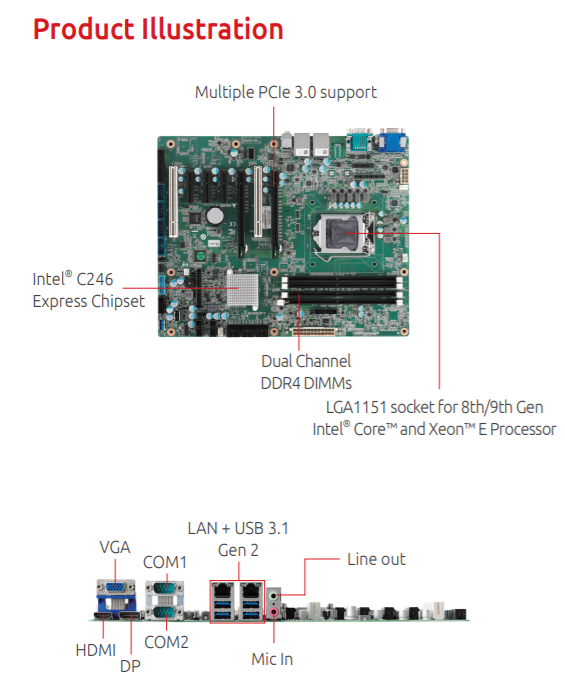

Key Features
● 8th/9th Gen Intel® Core™ i7/i5/i3 or Xeon™ E processors and C246 chipset
● ECC or NON ECC UDIMM support(based on CPU)
● Dual-channel DDR4 2400/2666 MHz memory up to 128 GB (based on CPU)
● Intel® PCIe 3.0 slot bifurcation supports up to 5x PCIe 3.0 expansion slots
● Rugged I/O design to enhance I/O port compatibility and reliability
● Unique power design to ensure stable USB power of 5V ±5%
● IEC 61000-4-2~6 (Performance Criterion A), CE/FCC class B certified
Introduction

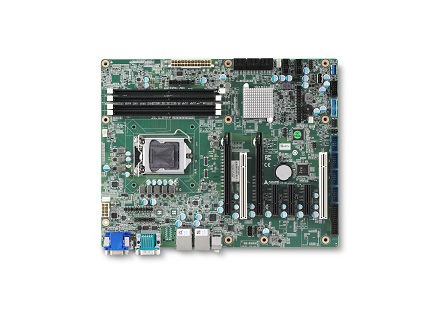

ADLINK IMB-M45 ATX industrial motherboard supports the 8th/9th Generation Intel Core i9/i7/i5/i3 and Xeon E3 processor in the LGA1151 package, and the Intel C246 chipset. This model supports ubiquitous high-speed data transfer interfaces PCIe 3.0, USB 3.1 Gen2 and SATA 6 Gb/s (SATA III), with dual-channel DDR4 2400/2666 MHz ECC or non-ECC memory up to 128 GB in four DIMM slots.
Delivering a scalable high performance platform for industrial machine automation systems, machine vision systems, and testing & measurement applications, the IMB-M45 enables intelligent PCIe lane allocation (3xPCIe 3.0 x4 lanes plus 1xPCIe 3.0 x16 lane, or 3xPCIe 3.0 x4 lanes plus 2xPCIe 3.0 x8 lanes) for a wide range of user configurations. On top of that, ADLINK’s advanced rugged I/O and power design ensures exceptional compatibility and long-term stability and reliability, while meeting the requirements of EN55032/55035 Class B standards.
