E-Catalog > Mainboards > IMB-M45H

PAGE VIEW : 1,060

Product Information :

Name :
IMB-M45H
Category :
  1. คอมพิวเตอร์และอุปกรณ์ ซอฟแวร์ ฮาร์ดแวร์
Sub - Category :
  1. Mainboards
Brand :
Adlink
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
Industrial ATX Motherboard with 8th/9th Gen Intel® Core™ i9/i7/i5/i3 Processor

Product Detail :

Key Features

● 8th/9th Gen Intel® Core™ i7/i5/i3 processors support, compatible with Windows® 10
● Up to 64 GB Dual-channel DDR4 2666 MHz(based on CPU)
● Rugged I/O design to enhance I/O port compatibility and reliability
● Unique power design to ensure stable USB power of 5V ±5%
● IEC 61000-4-2~6 (Performance Criterion A), CE/FCC class B certified


Introduction

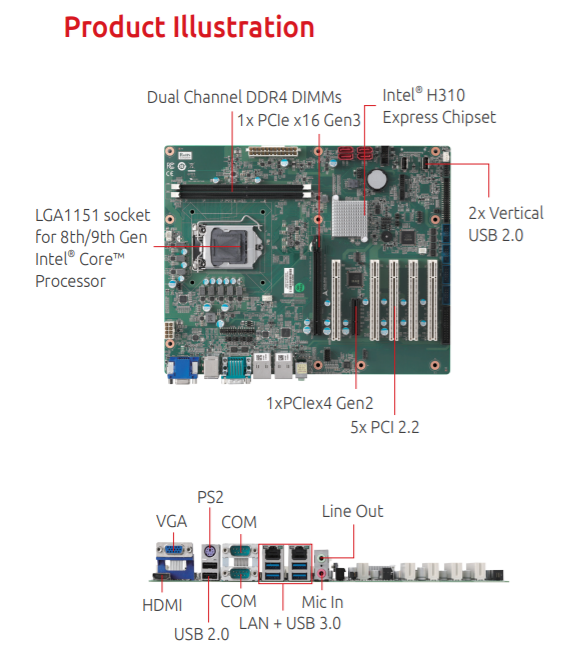

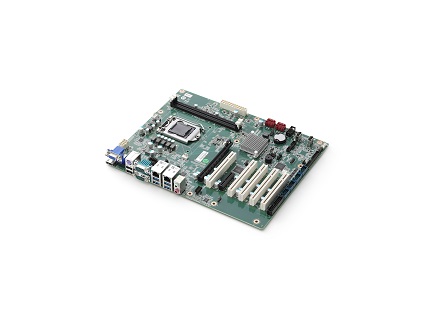

    ADLINK IMB-M45H ATX industrial motherboard supports the 8th/9th Generation Intel Core i9/i7/i5/i3 processor in the LGA1151 package, and the Intel H310 chipset. This model supports ubiquitous high-speed data transfer interfaces PCIe Gen3, USB 3.1 Gen1 and SATA 6 Gb/s (SATA III), with dual-channel DDR4 2400/2666 MHz memory up to 64 GB in two DIMM slots.

     Delivering a scalable high performance platform for diverse applications like motion controllers, the IMB-M45H supports 1xPCIe Gen3 x16 lanes, 1xPCIe Gen2 x4 lanes and 5xPCI for a wide range of user configurations. On top of that, ADLINK’s advanced rugged I/O and power design ensures exceptional compatibility, long-term stability and reliability, while meeting the requirements of EN55032/55035 Class B standards.
