Product Information :

Name :
IMB-M43
Category :
  1. คอมพิวเตอร์และอุปกรณ์ ซอฟแวร์ ฮาร์ดแวร์
Sub - Category :
  1. Mainboards
Brand :
Adlink
Model :
IMB-M43
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :

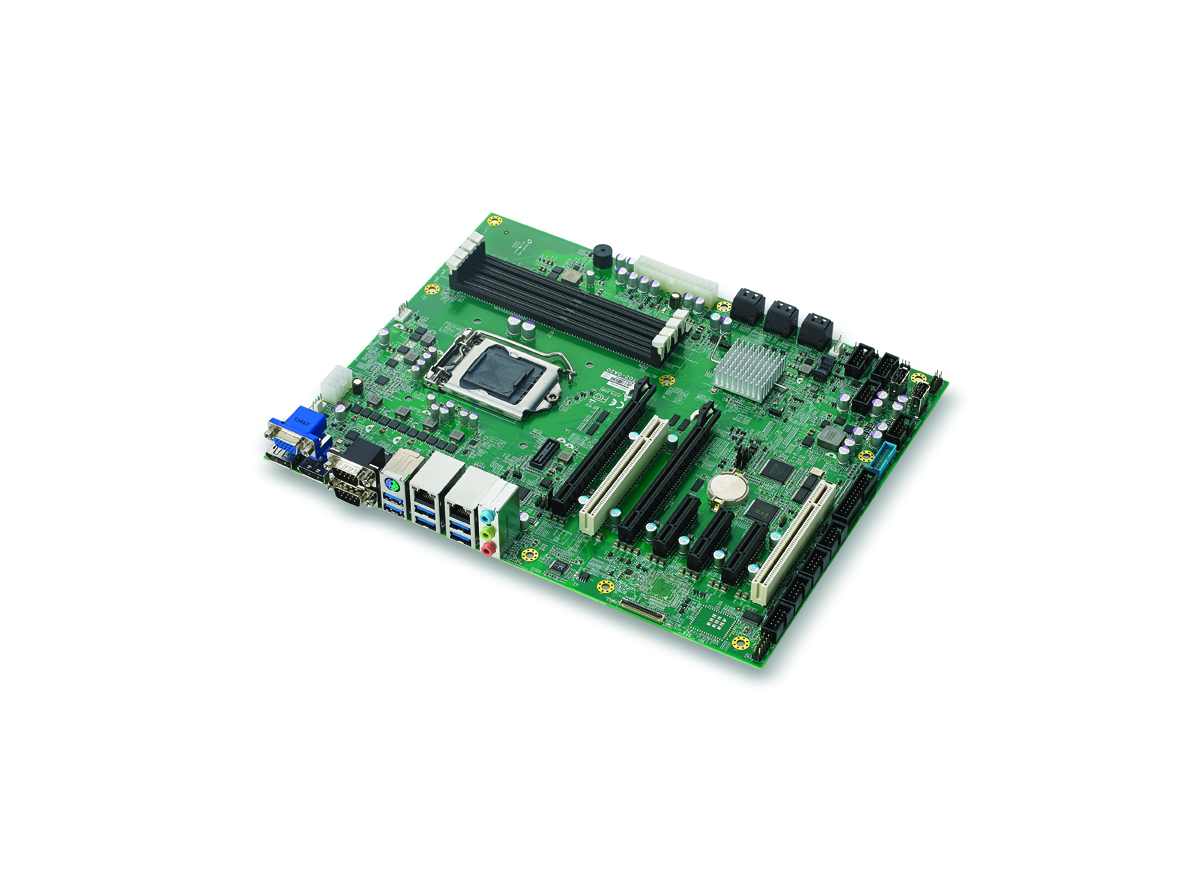

Industrial ATX Motherboard with 6th/7th Gen Intel® Core™ i7/i5/i3 Processor (Code name: Skylake/Kabylake)

Product Detail :

Key Features

  • Support the 6th/7th Gen Intel® Core™ i7/i5/i3 processor
  • Dual-channel DDR4 2133/2400 MHz memory up to 64 GB in four DIMM slots
  • PCIe 3.0 slot bifurcation supports up to 5x PCIe 3.0 expansion slots

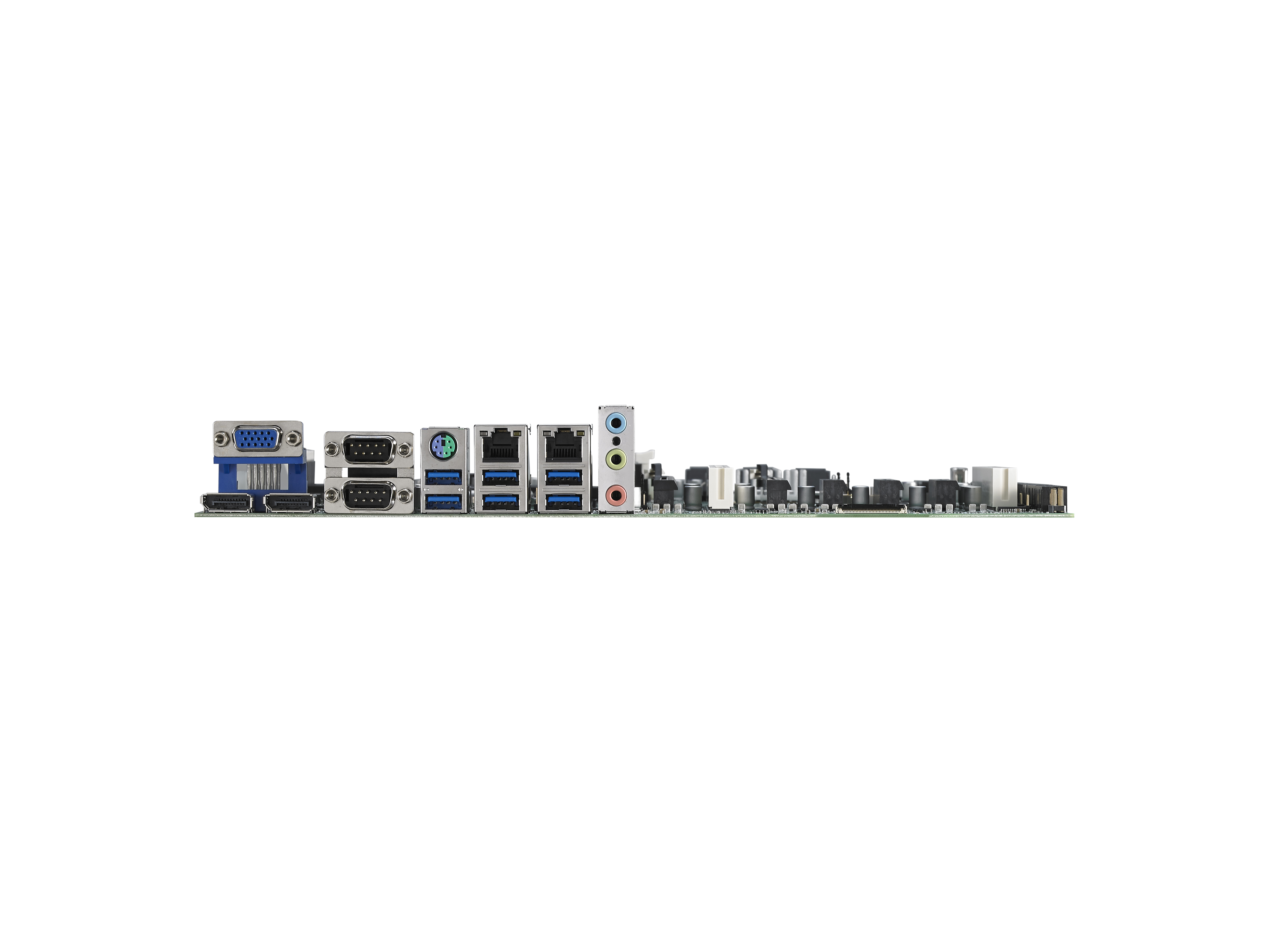

  • Rugged I/O design to enhance I/O port compatibility and reliability
  • Total 5 PCIe slots, among 4xPCIe 3.0 x4 lanes plus one 1xPCIe 3.0 x8 lane, 2xPCIe 3.0 x4 lanes plus 2xPCIe 3.0 x8 lanes, or 2xPCIe 3.0 x4 lanes plus 1xPCIe 3.0 x16 lane, and 2x PCI for Motion and I/O cards
  • Unique power design to ensure stable USB power of 5V +-5% even USB full loading by 300W PSU, conversing TCO.
  • Fully compatible with ADLINK's full spectrum of motion and I/O cards, and optimal system placement for motion/vision integrated solution.
  • IEC 61000-4-2~6 (Performance Criterion A), CE/FCC class B certified

Introduction

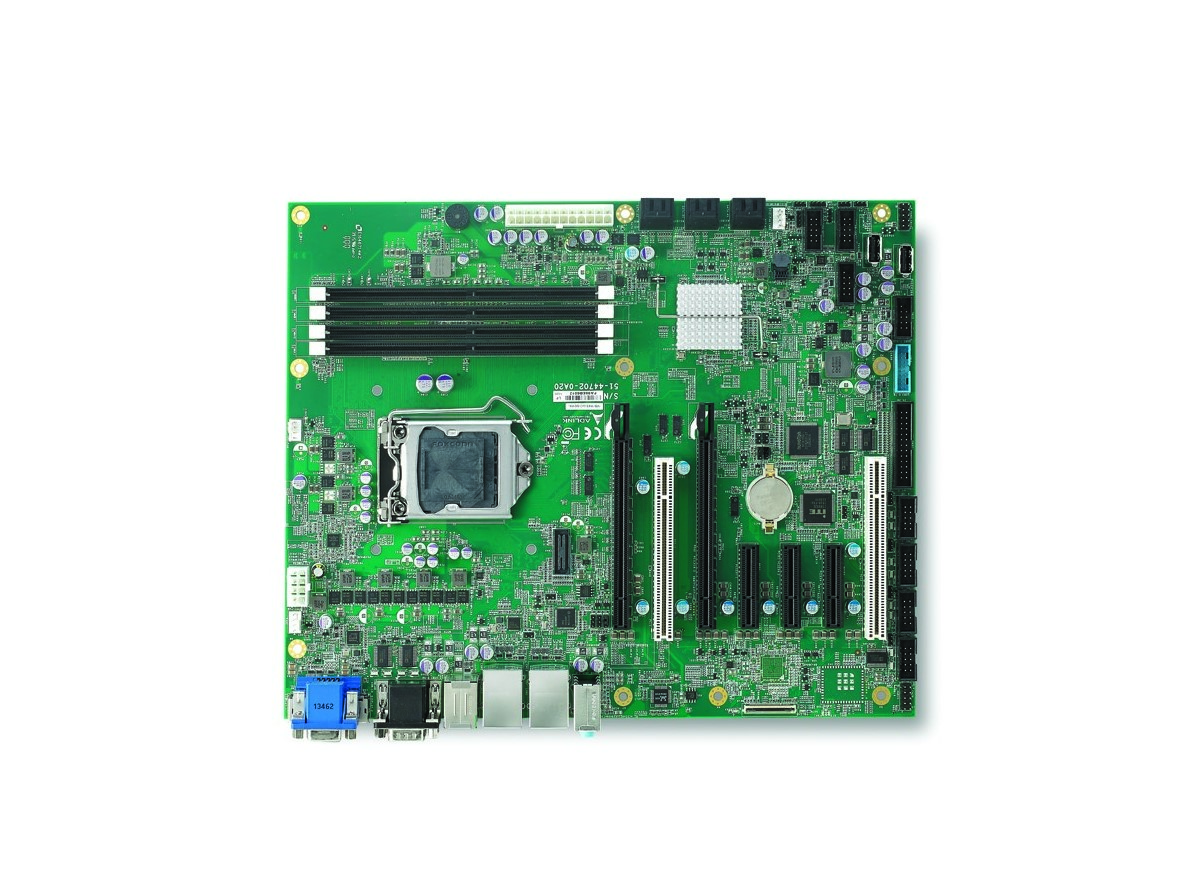

     The IMB-M43 is ADLINK's latest industrial ATX motherboard. Supporting the 6th Generation Intel® Core™ processor in the LGA1151 package, and the Intel Q170 Express chipset, the IMB-M43 supports such high-speed data transfer interfaces as PCIe3.0, USB 3.0 and SATA 6 Gb/s (SATA III), with dual-channel DDR4 2133 MHz memory up to 64 GB in four DIMM slots.

     Delivering a scalable high performance platform for machine automation systems, machine vision systems, and testing & measurement applications, the IMB-M43 enables intelligent selection of expansion interfaces from among 4xPCIe 3.0 x4 lanes plus one 1xPCIe 3.0 x8 lane, 2xPCIe 3.0 x4 lanes plus 2xPCIe 3.0 x8 lanes, and 2xPCIe 3.0 x4 lanes plus 1xPCIe 3.0 x16 lane. Additionally, singularly robust I/O configuration enhances high speed data connection reliability via USB3.0, LAN and SATA, for maximum performance and compatibility.
