Product Information :

Name :

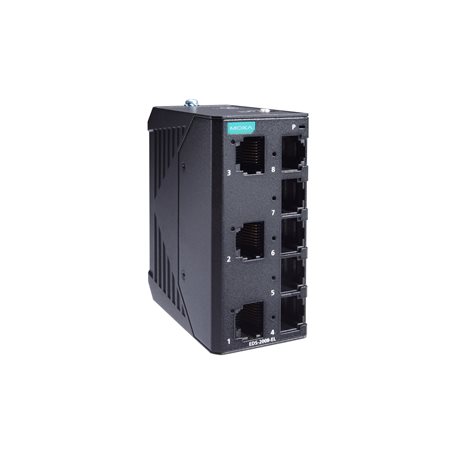

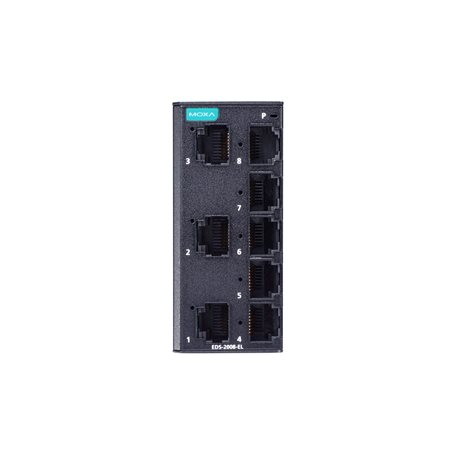

EDS-2008-EL
Category :
  1. คอมพิวเตอร์และอุปกรณ์ ซอฟแวร์ ฮาร์ดแวร์
Sub - Category :
  1. Networking
Brand :
MOXA
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
8-port entry-level unmanaged Ethernet switches with metal housing

Product Detail :

Key Features

● 10/100BaseT(X) (RJ45 connector)
● Compact size for easy installation
● QoS supported to process critical data in heavy traffic
● IP40-rated metal housing
● -40 to 75°C wide operating temperature range (-T models)


Introduction

The EDS-2008-EL series of industrial Ethernet switches have up to eight 10/100M copper ports, which are ideal for applications that require simple industrial Ethernet connections. To provide greater versatility for use with applications from different industries, the EDS-2008-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-2008-EL Series has a rugged metal housing to ensure suitability for use in industrial environments and fiber connections (Multi-mode SC or ST) can also be selected.

The EDS-2008-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size, the EDS-2008-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2008-EL Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.
